Design, manufacturing and integration capability — from structural definition and protection engineering through to finishing, system build and repeatable production.
Prestige Industrial is an Australian industrial-solutions company. We combine local engineering, integration and service with vetted global manufacturing to deliver enclosures and cabinets that are manufacturable, maintainable and repeatable at scale — from a single engineering prototype to a released production platform.
Installation envelope, thermal load, cable routing, operator interfaces, service access and handling.
Materials and gauges, folded frames, doors, hinges, lock systems, mounting plates and reinforcement.
Sealing, cable entry, earthing, dust and water ingress, impact resistance and outdoor suitability.
Laser cutting and CNC punching, bending, welding, pre-treatment, powder coating and assembly.
Pre-installation of rails, ducting, fans, lighting, terminals, displays, controllers and accessories.
Dimensional, finish, door and lock, earth continuity, fitment and protection-target verification.
Concept design · 3D CAD · 2D manufacturing drawings · bill of materials · finish specification · assembly drawings · inspection requirements · prototype and production data pack

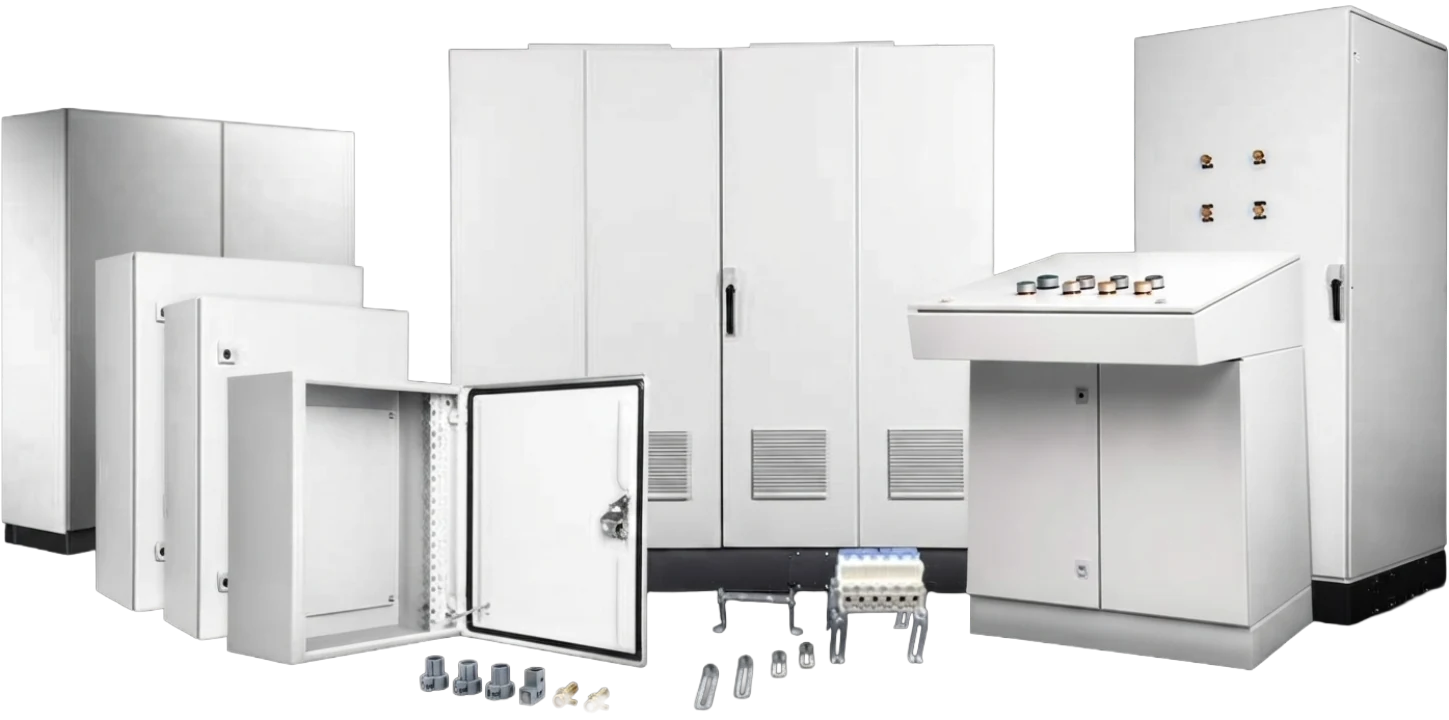

Standard enclosure platforms — AE, ES, PS, PC, AP/AD and 19" server rack
Wall-mount AE sealed to IP65 with IK10 impact resistance as standard
Millimetres maximum standard free-standing height, in 600–1200 mm widths
Design for manufacture and assembly applied before the first article is cut

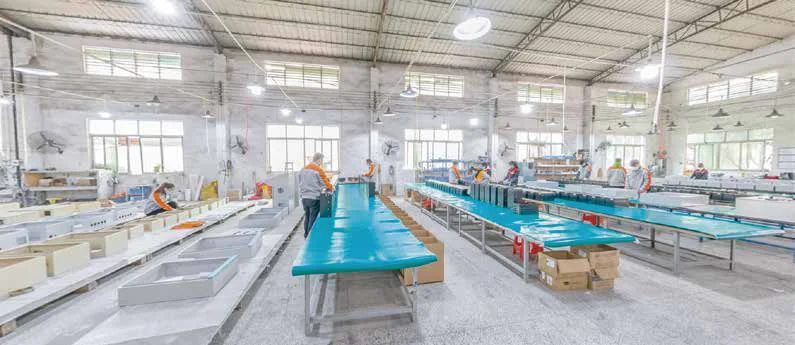

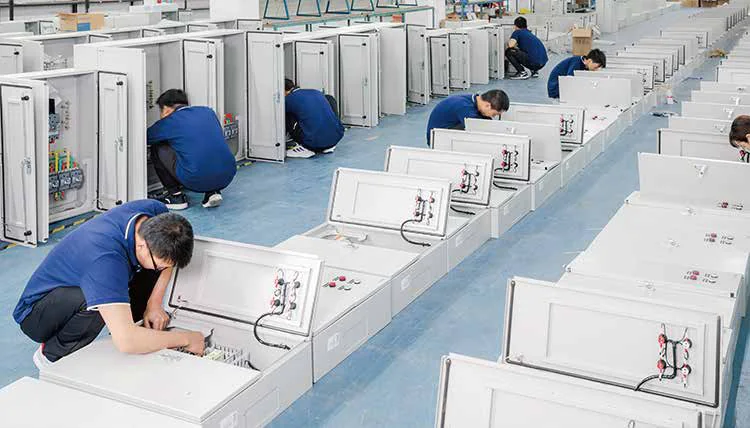

Enclosure assembly & fit-out line
Six standard platforms cover the majority of industrial applications. Each is a configurable base rather than a fixed catalogue item — dimensions, cut-outs, finish and internal fit-out are set by the equipment and the operating environment.

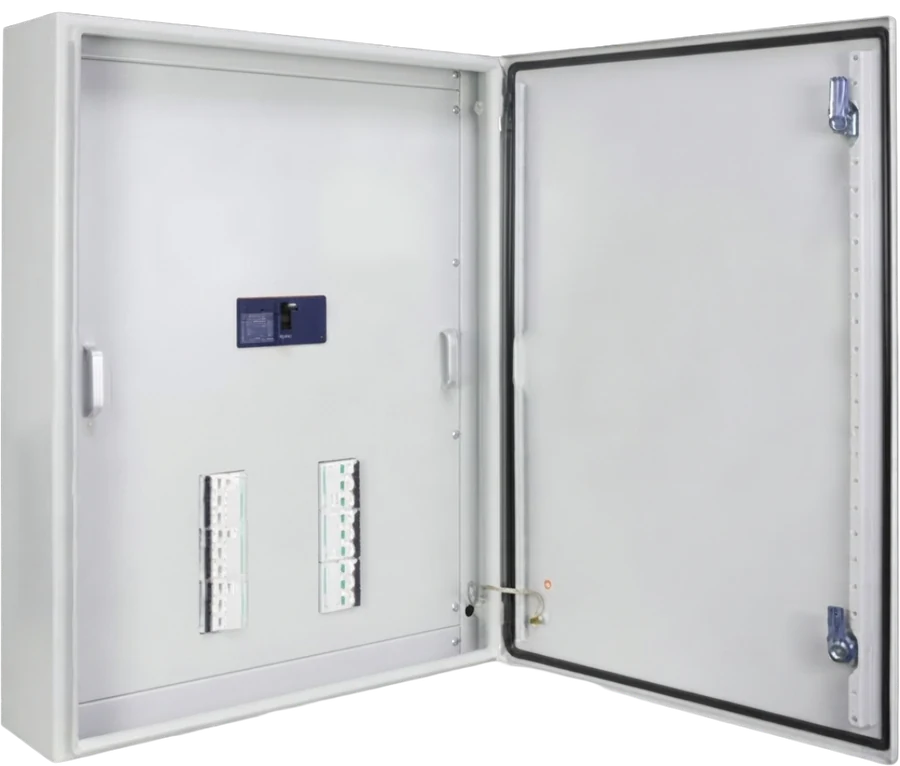

Single- or double-door compact enclosure supplied with mounting plate, lock system, gland plate and sealing gasket.

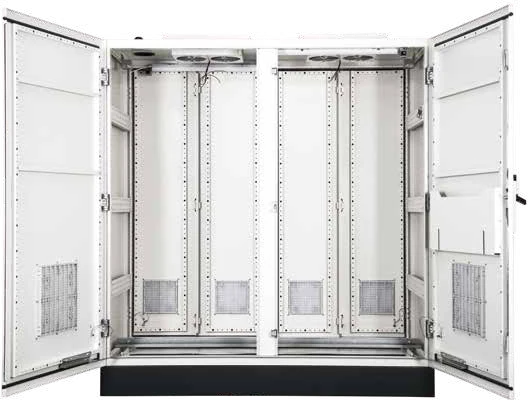

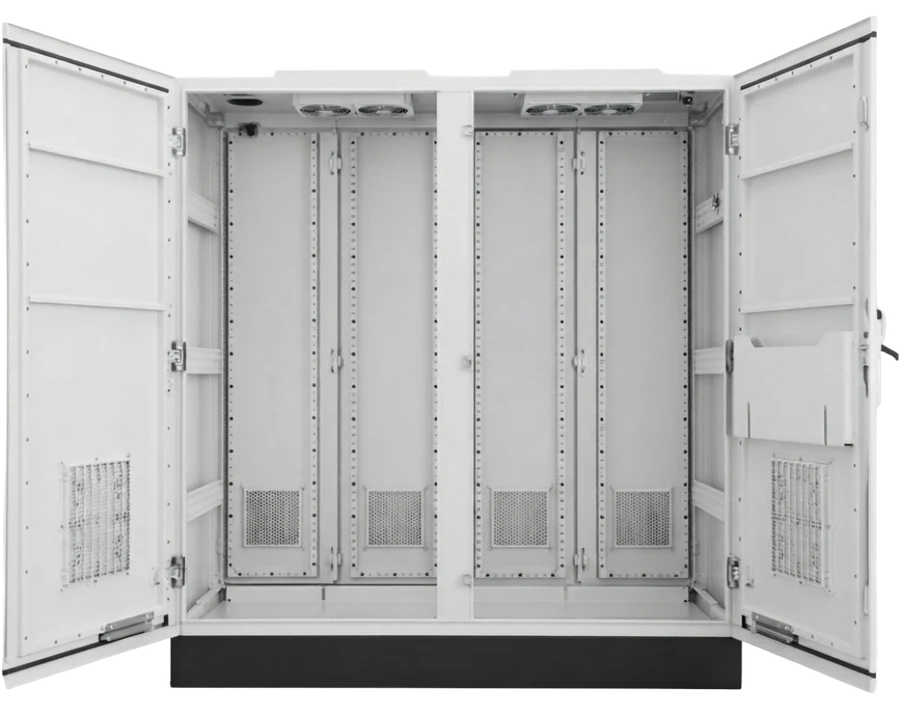

Single and multi-bay floor cabinets with MS830 locking, removable cable entry and four lifting eyebolts.

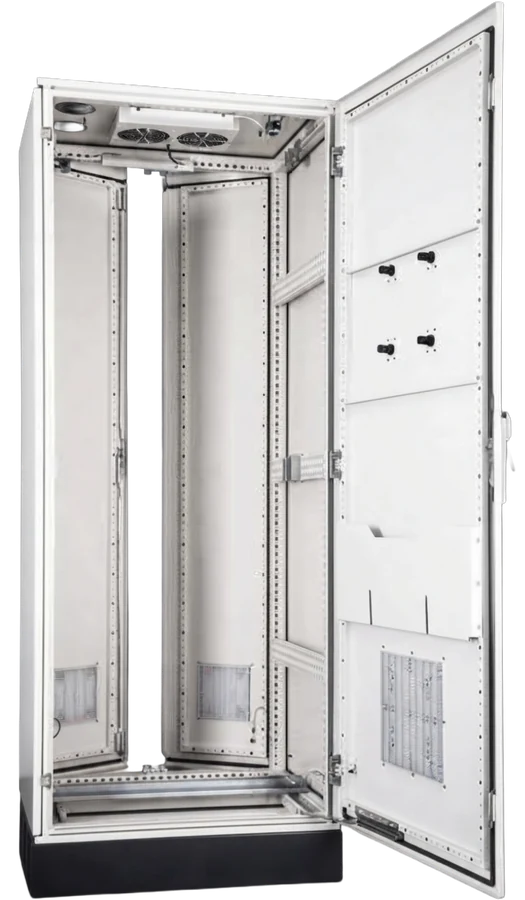

Nine-fold profile frame with removable panels, front and rear doors, and bay coupling for expandable line-ups.

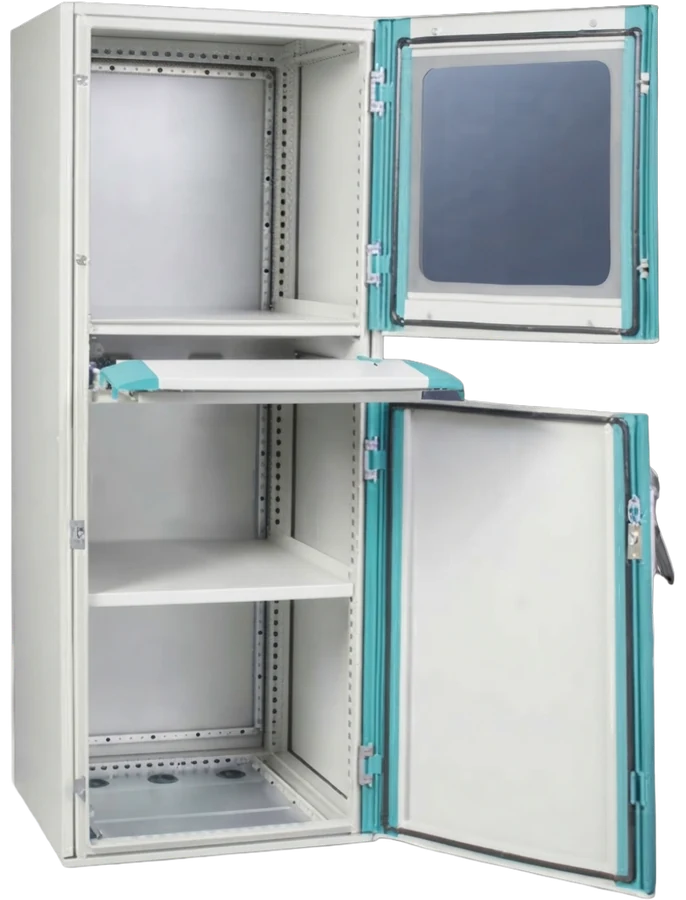

Monitoring window, keyboard tray, removable shelves and side panels for industrial PC and HMI installations.

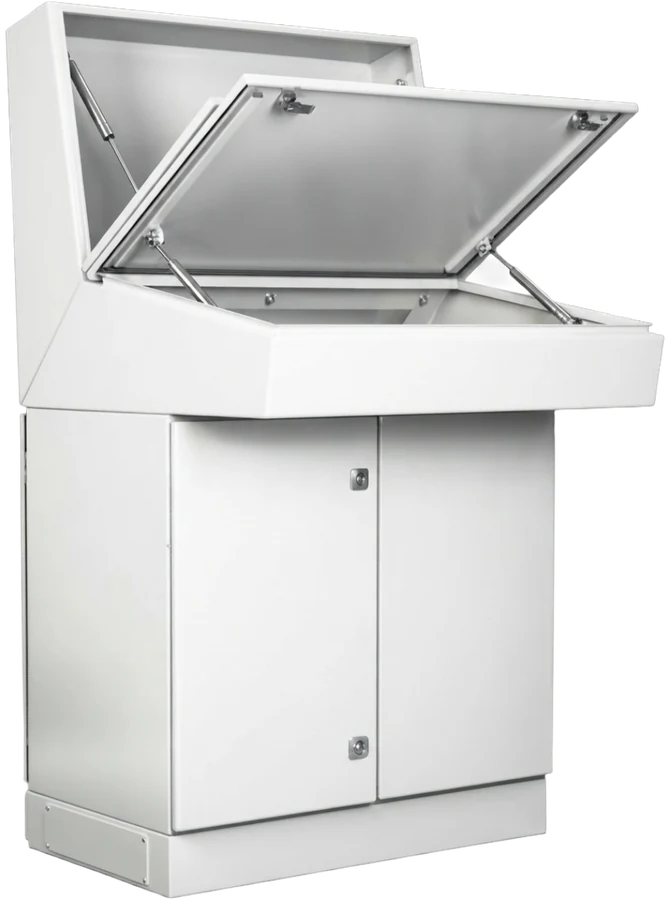

Ergonomic operating surface with lift-up panel; front and rear doors open for convert installation and service.

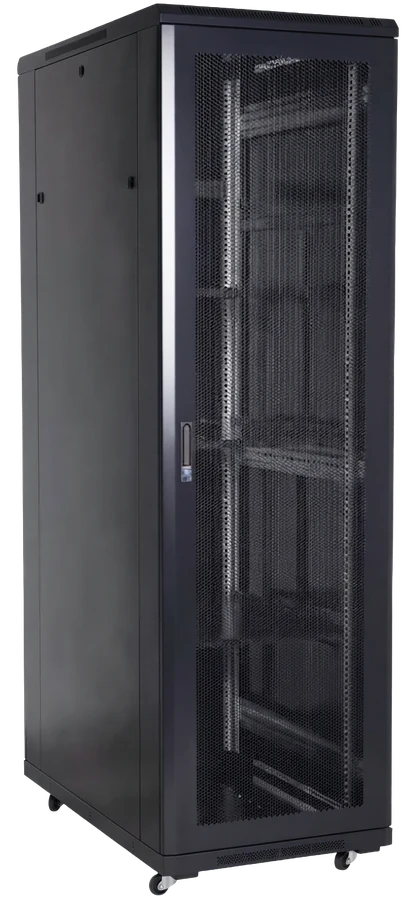

EIA-standard rack with 78 % ventilation honeycomb doors, adjustable mounting angles and cable management.
Cold-rolled steel, epoxy-polyester powder coat with texture finish, RAL 7035 standard.
MS821 and MS830 compression locks, key barrels, swing handles and padlockable options.
Removable gland plates as standard, with brush strip, connector panel and gland options.
Lifting eyebolts on free-standing platforms; plinths, castors and forklift pockets to order.
Beyond the standard platforms, we design and source enclosures built around a specific duty — operator ergonomics, outdoor exposure, switchgear line-ups and metering.

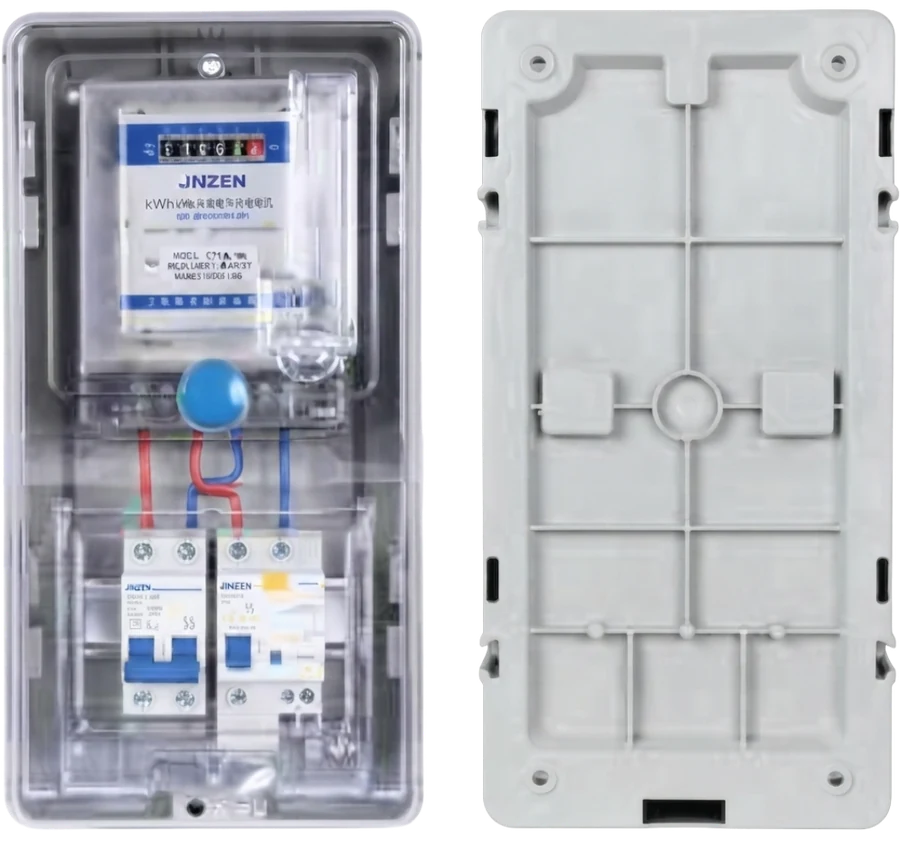

Single- and three-phase metering boxes with transparent sealed cover, moulded back plate and tamper-evident terminal shrouds.

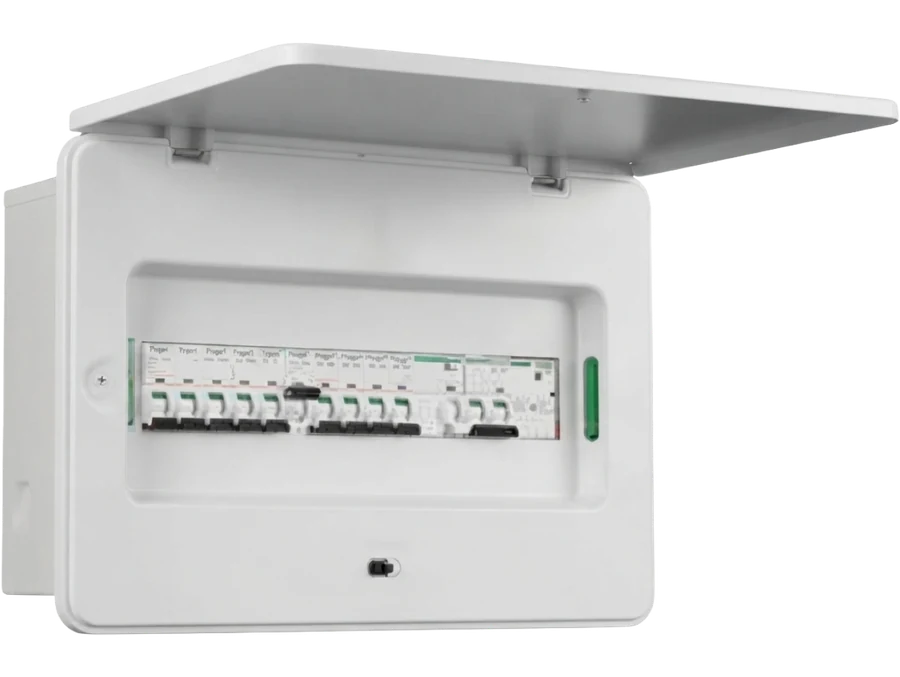

Certificated switch and distribution boards with hinged lid, DIN chassis, neutral and earth bars and knockout cable entries.
Machine-side operator station on a rotating support arm with internal mounting channel and cable routing.
Rain hood, drainage, ventilation and stainless or coated construction for exposed and roadside installations.
Withdrawable and fixed-pattern LV assemblies, busbar and cable segregation, coordinated multi-bay access.

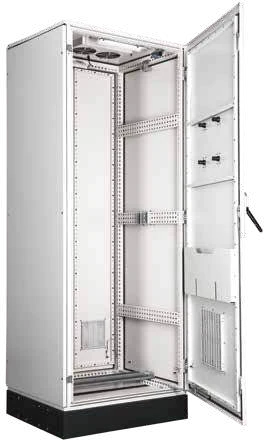

Program-logic control cabinets, battery-storage panels and EV-charge enclosures built on the free-standing platform.
Where the equipment does not fit a platform, we start from the layout instead: bespoke profiles, angled faces, special cut-out patterns, viewing windows, ventilation arrays and non-standard access — designed for manufacture from the first sketch.
Platform sizing family
Hazardous-area stations
Outdoor distributionStandard construction for each platform. All powder-coated finishes are epoxy-polyester with a texture finish; RAL 7035 light grey is standard and alternative RAL colours are available to order.
| Series | Type | Door / body steel | Mounting plate | Ingress | Impact | Finish |
|---|---|---|---|---|---|---|
| AE | Wall-mount compact | 1.2 mm to 1.5 mm by height | 1.2 mm zinc-coated | IP65 | IK10 | RAL 7035 |
| ES | Free-standing, single & multi-bay | Door 2.0 mm / body 1.5 mm | 2.5 mm galvanised | IP54 | IK10 | RAL 7035 |
| PS | Modular nine-fold frame system | Door 2.0 mm / body 1.5 mm | 2.5 mm galvanised | IP54 | IK10 | RAL 7035 |
| PC | Operator / HMI enclosure | Door & body 1.5 mm | 2.0 mm galvanised | To project | IK10 | RAL 7035 |
| AP / AD | Desk console | Door 2.0 mm / body 1.5 mm | 2.0 mm zinc-coated | IP54 | IK10 | RAL 7035 |
| Rack | 19" network / server cabinet | Cold-rolled steel, honeycomb doors | 19" EIA mounting angles | Ventilated | — | RAL 9005 |
| Series | Height (mm) | Width (mm) | Depth (mm) | Standard supply includes |
|---|---|---|---|---|
| AE | 400 – 1200 | 300 – 700 | 160 / 210 / 260 / 310 | Enclosure & door, mounting plate, lock system, gland plate, sealing gasket, fixings |
| ES | 1500 – 2200 | 600 – 1200 | 500 / 600 | Body & door with MS830 lock and hinges, removable cable entry, 4 lifting eyebolts |
| PS | 1600 – 2200 | 600 – 1200 | 600 / 800 | Front door with reinforcing frame & MS821 lock, rear panel, mounting plate + 4 supports, top cover, removable gland plate, 4 lifting eyebolts |
| PC | 1600 | 600 | 600 | Front door with MS821 lock, rear panel, mounting plate, keyboard tray, monitoring window, 2 removable layers, 2 removable side panels, 4 lifting eyebolts |
| AP / AD | 1500 | 600 – 1000 | 800 | Door with lock and hinges, mounting plate, enclosure body; sliding zinc-coated mounting plate |
| Rack | 1800 – 2200 | 600 – 1000 | 800 – 1200 | EIA rack, honeycomb front/rear doors with locks, side panels, wire harnesses, shelves, PDU, plinth with wheels, M6 fixings |
100 mm and 200 mm plinths, forklift pockets and levelling feet are specified separately to suit floor condition, cable entry direction and site handling.
ES and PS frames couple side-by-side with sealing strips and shared side panels, giving a continuous line-up with segregated internal zones.
Mounting brackets, protective covers, rail sets, ducting, gland plates, thermal components, lighting and door-position switches.
| Model | H | W | D | Locks |
|---|---|---|---|---|
| AE404016-A-1 | 400 | 400 | 160 | 1 |
| AE505016-A-1 | 500 | 500 | 160 | 2 |
| AE506016-A-1 | 500 | 600 | 160 | 2 |
| AE605016-A-1 | 600 | 500 | 160 | 2 |
| AE606016-A-1 | 600 | 600 | 160 | 2 |
| AE607016-A-1 | 600 | 700 | 160 | 2 |
| AE403021-A-1 | 400 | 300 | 210 | 1 |
| AE504021-A-1 | 500 | 400 | 210 | 2 |
| AE505021-A-1 | 500 | 500 | 210 | 2 |
| AE604021-A-1 | 600 | 400 | 210 | 2 |
| AE605021-A-1 | 600 | 500 | 210 | 2 |
| AE606026-A-1 | 600 | 600 | 210 | 2 |
| AE705021-A-1 | 700 | 500 | 210 | 2 |
| AE706021-A-1 | 700 | 600 | 210 | 2 |
| AE707021-A-1 | 700 | 700 | 210 | 2 |
| Model | H | W | D | Locks |
|---|---|---|---|---|
| AE504026-A-1 | 500 | 400 | 260 | 2 |
| AE605026-A-1 | 600 | 500 | 260 | 2 |
| AE705026-A-1 | 700 | 500 | 260 | 2 |
| AE706026-A-1 | 700 | 600 | 260 | 2 |
| AE805026-A-1 | 800 | 500 | 260 | 2 |
| AE806026-A-1 | 800 | 600 | 260 | 2 |
| AE807026-A-1 | 800 | 700 | 260 | 2 |
| AE905026-A-1 | 900 | 500 | 260 | 2 |
| AE906026-A-1 | 900 | 600 | 260 | 2 |
| AE106026-A-1 | 1000 | 600 | 260 | 2 |
| AE806031-A-1 | 800 | 600 | 310 | 2 |
| AE906031-A-1 | 900 | 600 | 310 | 2 |
| AE107031-A-1 | 1000 | 700 | 310 | 2 |
| AE117031-A-1 | 1100 | 700 | 310 | 2 |
| AE126031-A-1 | 1200 | 600 | 310 | 2 |
1.2 / 1.2 mm at 400–600 mm · 1.2 / 1.5 mm at 700–900 mm · 1.5 / 1.5 mm at 1000–1200 mm (body / door)
1.2 mm zinc-coated across the full height range, adjustable on the rear rail set.
Removable gland plate to the base as standard; brush strip, connector panel and multi-gland options.
The table above is a representative subset. Intermediate and larger sizes are available to order.
Cold-rolled steel. Front door 2.0 mm, body 1.5 mm, bottom cable plate 1.5 mm, galvanised mounting plate 2.5 mm. IP54, IK10, RAL 7035. Supplied with MS830 locking system and hinges, removable cable entry and four lifting eyebolts. Plinth specified separately.
Nine-fold profile frame. Front door 2.0 mm with reinforcing frame and MS821 lock, body 1.5 mm, cable plate 1.5 mm, galvanised mounting plate 2.5 mm. IP54, IK10, RAL 7035. Rear panel, mounting-plate supports, top cover and removable gland plate included.
| Model | H | W | D | Locks |
|---|---|---|---|---|
| ES156050-A-3 | 1500 | 600 | 500 | 1 |
| ES158050-A-3 | 1500 | 800 | 500 | 1 |
| ES151050-A-4 | 1500 | 1000 | 500 | 2 |
| ES151250-A-4 | 1500 | 1200 | 500 | 2 |
| ES166050-A-3 | 1600 | 600 | 500 | 1 |
| ES168050-A-3 | 1600 | 800 | 500 | 1 |
| ES161050-A-4 | 1600 | 1000 | 500 | 2 |
| ES176050-A-3 | 1700 | 600 | 500 | 1 |
| ES178050-A-3 | 1700 | 800 | 500 | 1 |
| ES186050-A-3 | 1800 | 600 | 500 | 1 |
| ES188050-A-3 | 1800 | 800 | 500 | 1 |
| ES181050-A-4 | 1800 | 1000 | 500 | 2 |
| ES206060-A-3 | 2000 | 600 | 600 | 1 |
| ES208060-A-3 | 2000 | 800 | 600 | 1 |
| ES201060-A-4 | 2000 | 1000 | 600 | 2 |
| ES226060-A-3 | 2200 | 600 | 600 | 1 |
| ES221260-A-4 | 2200 | 1200 | 600 | 2 |
| Model | H | W | D | Front door |
|---|---|---|---|---|
| PS168060-A-3 | 1600 | 800 | 600 | Single |
| PS161060-A-4 | 1600 | 1000 | 600 | Double |
| PS161260-A-4 | 1600 | 1200 | 600 | Double |
| PS186060-A-3 | 1800 | 600 | 600 | Single |
| PS188060-A-3 | 1800 | 800 | 600 | Double |
| PS181060-A-4 | 1800 | 1000 | 600 | Double |
| PS206060-A-3 | 2000 | 600 | 600 | Single |
| PS208060-A-3 | 2000 | 800 | 600 | Single |
| PS201060-A-4 | 2000 | 1000 | 600 | Double |
| PS226060-A-3 | 2200 | 600 | 600 | Single |
| PS186080-A-3 | 1800 | 600 | 800 | Single |
| PS188080-A-3 | 1800 | 800 | 800 | Single |
| PS181080-A-4 | 1800 | 1000 | 800 | Double |
| PS206080-A-3 | 2000 | 600 | 800 | Single |
| PS201080-A-4 | 2000 | 1000 | 800 | Double |
| PS226080-A-3 | 2200 | 600 | 800 | Single |
| PS221080-A-4 | 2200 | 1000 | 800 | Double |
Front and rear doors plus the operating panel all open for convert installation. Zinc-coated mounting plate slides back and forth. IP54, IK10, RAL 7035.
Monitoring window, keyboard tray, two removable layers and two removable side panels. Nine-fold profile frame, MS821 lock, IK10, RAL 7035.
Nine-fold frame with 78 % ventilation honeycomb doors and adjustable mounting angles. RAL 9005, 5–35 Hz seismic, 2000 kg load capacity.
| Model | H | W | D |
|---|---|---|---|
| AP156080 | 1500 | 600 | 800 |
| AP158080 | 1500 | 800 | 800 |
| AP151080 | 1500 | 1000 | 800 |
| PC166060 | 1600 | 600 | 600 |
| Item | Quantity |
|---|---|
| 19" EIA standard rack | One set |
| Front single steel honeycomb door with lock | One piece |
| Rear double steel honeycomb door with lock | One piece |
| Solid side panel | One pair |
| Vertical wire harness | One pair |
| Shelves | One piece |
| Ten-way PDU power supply | One piece |
| Plinth with wheels | Four |
| M6 screws | Fifty sets |
| Model | W | D | H | Capacity |
|---|---|---|---|---|
| 101020 | 1000 | 1070 | 2000 | 42U |
| 101022 | 1000 | 1070 | 2200 | 46U |
| 801020 | 800 | 1070 | 2000 | 42U |
| 801022 | 800 | 1070 | 2200 | 46U |
| 801220 | 800 | 1200 | 2000 | 42U |
| 808020 | 800 | 800 | 2000 | 42U |
| 609518 | 600 | 950 | 1800 | 37U |
| 609520 | 600 | 950 | 2000 | 42U |
| 609522 | 600 | 950 | 2200 | 46U |
| 601218 | 600 | 1200 | 1800 | 37U |
| 601220 | 600 | 1200 | 2000 | 42U |
| 601222 | 600 | 1200 | 2200 | 46U |
| 601020 | 600 | 1070 | 2000 | 42U |
| 601022 | 600 | 1070 | 2200 | 46U |
| 608020 | 600 | 800 | 2000 | 42U |
Control-room console installation

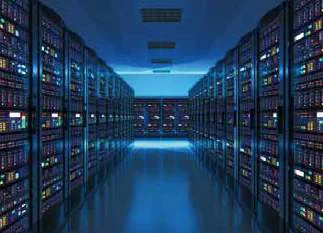

Network & server rack deploymentA platform-based structure with configurable modules balances customisation against cost, lead time and future expansion. Each layer is specified independently, so a change to the operator interface does not force a change to the load-bearing structure.
Late changes are normal — an extra drive, a bigger display, a different cable route. Keeping the interface, internal, protection and structural layers independent means most late changes are absorbed by one layer instead of forcing a redesign of the whole enclosure.
Internal rail & bracket sets
Removable gland / cable-entry plate

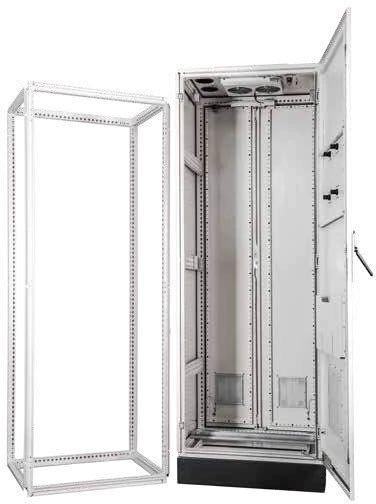

Nine-fold profile load-bearing frame
| Design item | Available options | Application considerations |
|---|---|---|
| Primary material | Cold-rolled steel, stainless steel, aluminium and engineering polymers | Strength, corrosion resistance, mass, EMC performance, cost and appearance |
| Gauge strategy | Defined separately for door, body, mounting plate and gland plate | Checked against size, loading, cut-out ratio and transport method |
| Surface finish | Epoxy-polyester powder coat (texture), brushed finish, passivation, anodising, plating | Indoor / outdoor duty, chemical exposure, brand colours and cleaning regime |
| Sealing system | Continuous foam gasket, formed seals and compression latching | Door gaps, joints, windows, cable entries and maintenance frequency |
| Thermal management | Natural convection, filtered fans, heat exchangers and cabinet air conditioning | Ambient temperature, internal heat load, dust and humidity |
| Cable entry | Removable gland plates, cable glands, connector panels and brush strips | Bend radius, strain relief, sealing and site installation method |
| Lock system | MS821 / MS830 compression locks, key barrels, swing handles, padlockable options | Access control, door pull-in for gasket compression and site key management |
Structure and validation planned to the project target — IP65 on sealed wall-mount platforms, IP54 on free-standing. Final ratings remain subject to the agreed test and certification scope.
Gauge selection, folded edges, stiffeners, locking points and mounting method are used together to raise stiffness and resistance to deformation.
Materials, coatings and fasteners selected for UV, salt, temperature cycling, condensation and chemical exposure — including stainless and marine-grade options.
RAL 7035 light grey, epoxy-polyester powder coat with texture finish, is standard across AE, ES, PS, PC and AP/AD. Server racks are finished RAL 9005 black. Alternative RAL colours, gloss levels and two-tone schemes are available to order.
Degrease, phosphate pre-treatment and rinse, dry, electrostatic powder application, then oven cure. Coating thickness, adhesion and colour are checked as part of in-process inspection.
Material confirmation, nesting, flat-pattern verification and batch traceability.
Laser cutting or CNC punching of profiles, cut-outs and mounting holes.
Controlled bend sequence, dimensions, angles and spring-back compensation.
Spot, seam and stud welding followed by grinding and surface dressing.
Pre-treatment, powder coating, passivation or anodising, then oven cure.
Seals, locks, hinges, earth bonds and accessories installed.
Mounting plates, rails, ducting, fans and panel hardware fitted.
Critical dimensions, door gaps, flatness and function checked.
Fitment, earthing, protection and cosmetic acceptance.
Protective packaging, labelling, documentation and batch records.

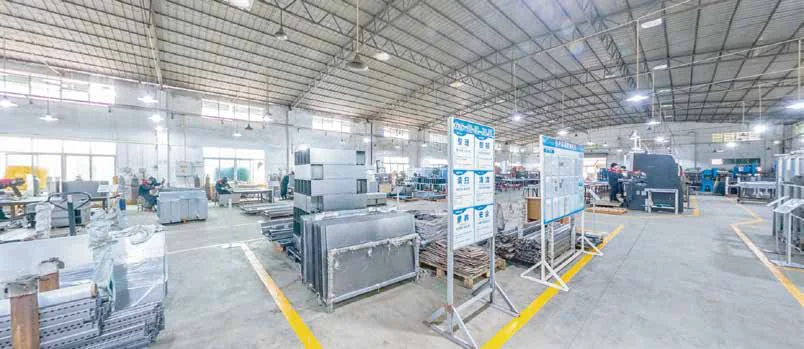

Forming

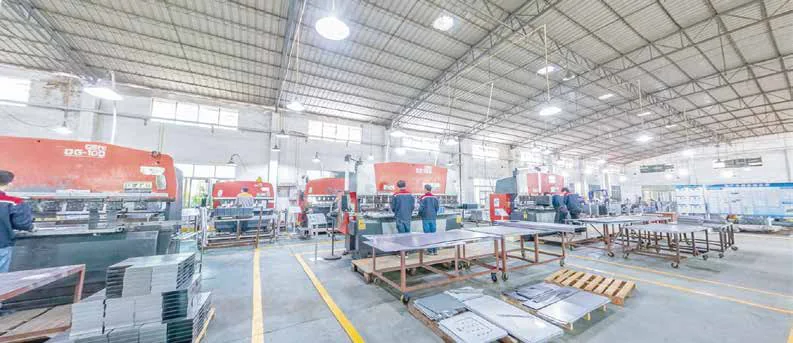

Fabrication
Assembly
PackingDuring design we check bend access, weld distortion, coating masks, tool access, assembly sequence and transport packaging — so that the first article validates the design instead of exposing avoidable rework.
Standard material stock, common lock and hinge hardware, and low-tooling processes accelerate first-article validation while keeping the design flexible enough to change after review.
Drawing release, critical-feature definition, inspection tooling and a supply-chain substitution strategy support consistent output across repeat batches.
An enclosure is only correct once the real equipment, real cables and real service actions fit inside it. We design from the internal layout outwards.

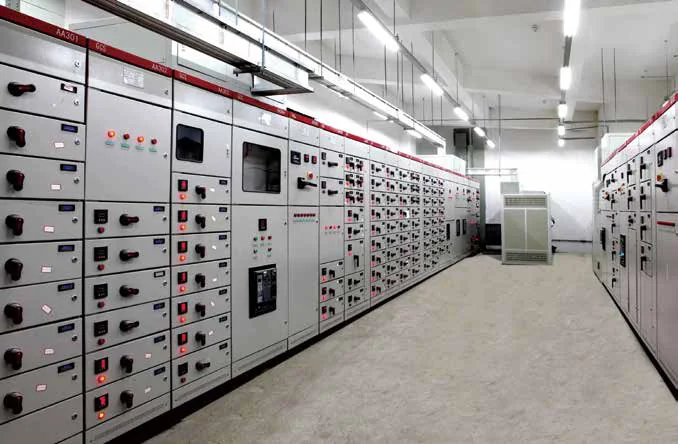

Switchroom line-up

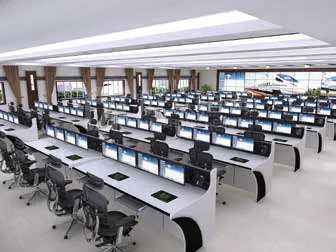

Operator control room
Cabinet fit-outConsistent datums, critical tolerances, materials, colours, finishes and revision status.
Overall dimensions, door gaps, diagonals, mounting holes and interface positions treated as critical characteristics.
Functional verification of doors, locks, hinges, drawers, mounting plates and removable components.
Inspection of welds, dressing, edges, coating colour, thickness, adhesion and cosmetic defects.
Protective bonding of doors, body and mounting plate, plus sharp-edge and pinch-point checks.
Gasket continuity and compression, cable entries and drainage, with project-specific testing.
We recommend a joint customer review of the first prototype before production — using actual components and cables to verify operating space, service actions, transport handling and site installation.
| Stage | Output / record | Release criteria |
|---|---|---|
| Design review | 3D model, 2D drawings, BOM, interface schedule and risk register | Critical requirements closed, or deviations formally accepted |
| First manufactured article | Dimensional report, cosmetic record and assembly issue list | Critical dimensions and functions meet released data |
| System assembly | Component fit, wiring, thermal and service checks | No interference; installable, operable and maintainable |
| Delivery acceptance | Inspection records, packing list, drawings and change status | Acceptance completed against contract and technical agreement |
First article reviewed jointly before production release
Critical dimensions and functions checked on the first article
Controlled drawing revisions carried through to delivery records
Traceability records retained against each production batch
Environment, internal equipment, interfaces, regulations, quantity, schedule and cost targets.
Structural concept, appearance, equipment layout, maintenance actions and risk review.
3D and 2D data, materials, BOM, sealing, thermal management and DFM.
First-article manufacture, finishing, assembly and engineering issue closure.
Install actual equipment; verify interfaces, operation, maintenance and environmental targets.
Incorporate verification outcomes; release drawings, BOM and acceptance criteria.
Verify consistency, assembly cycle, packaging, transport and site installation.
Revision control, in-process inspection, change management and continuous improvement.

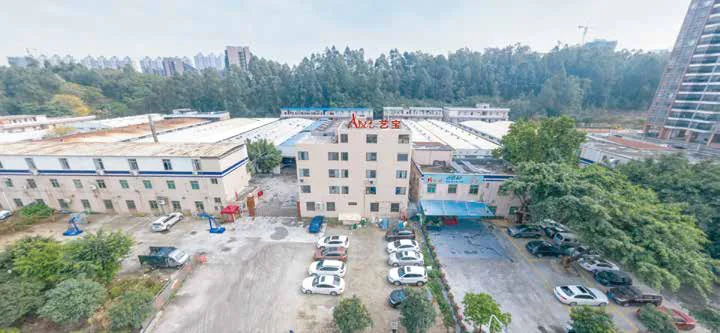

Vetted manufacturing partner facility
Completed multi-bay cabinet
Start with the internal equipment layout, the operating environment, the service approach and the target volume. We can begin with an engineering review, then define the concept-design and prototype scope.
