Split frames · entry plates · glands · IP54–IP66
Cable Entry Systems
Seal cables into control cabinets, machines and enclosures without cutting a single connector. Split frames and grommets close around pre-terminated cables; push-through plates and glands take bare cables in seconds — rated IP54 to IP66, UL 94 V-0 and halogen-free.
Exclusive international partner. Outside China, this cable-sealing range — proven on metro, power-grid and data-centre projects — is supplied, engineered and supported only through Prestige Industrial.

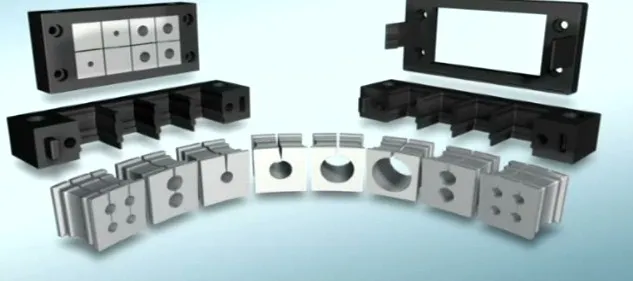

Split Cable Entry Frames
Divisible frames and split grommets that close around cables with the connectors already fitted — no cutting, re-terminating or special tools. Mix grommet sizes, blanking plugs and connector pass-throughs in one frame.
- Frame PA66 + 25% glass fibre · 17 mm · black
- Protection IP54 / IP65 · UL 94 V-0 · halogen-free
- Service range −40 °C to +140 °C
- Inserts Split grommets · blanking plugs · connector pass-throughs

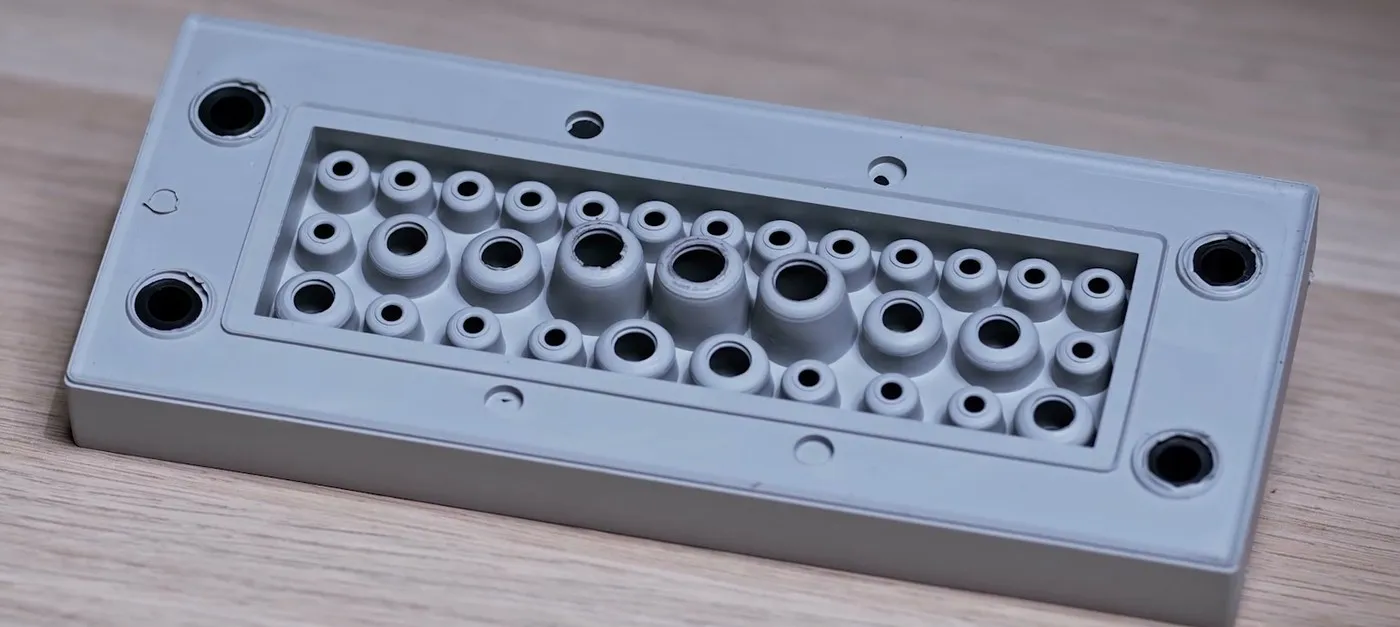

Push-Through Cable Entry Plates
One-piece plates with a super-elastic membrane that stretches up to 500% and grips each cable as it is pushed through — dozens of entries in a single cut-out, sealed without glands.
- Material TPE on PA66 · halogen- & silicone-free
- Protection IP65 / IP66 · UL 94 V-0, self-extinguishing
- Typical cut-out 36 × 112 mm · 14 mm thick
- Service range −40 °C to +90 °C (static) · grey or black

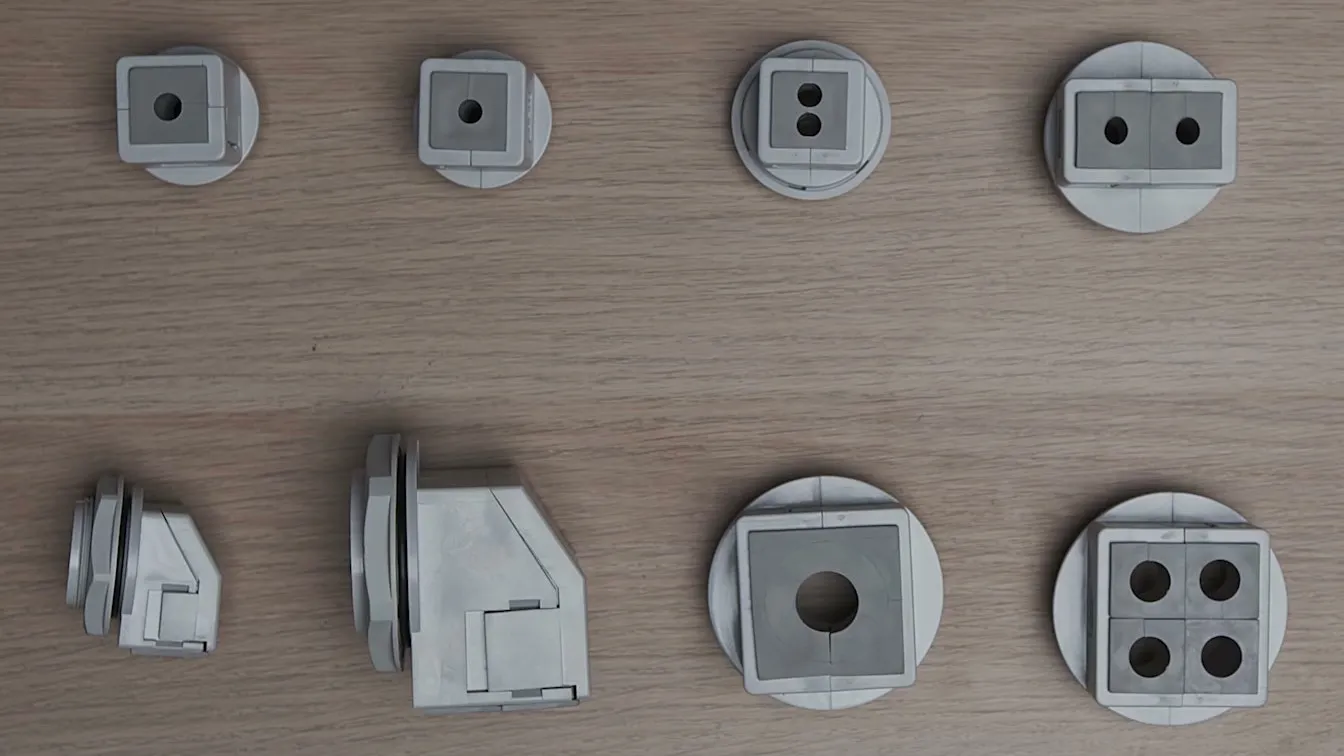

Split Cable Glands
Two-part glands that open around cables with pre-fitted plugs — ideal for retrofitting old cable entries without disconnecting anything. Interchangeable inserts seal one or several cables per gland.
- Material Polycarbonate · halogen-free · light grey
- Protection IP54 / IP65 (with inserts) · UL 94 V-0
- Service range −30 °C to +100 °C

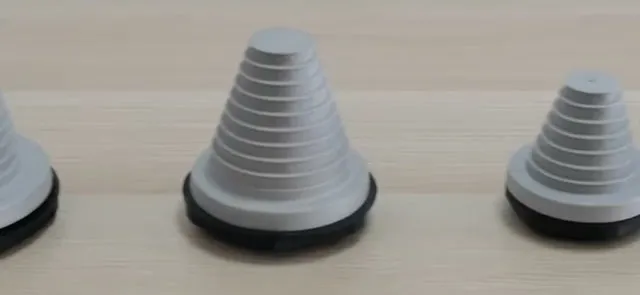

Stepped Cone Grommets
Stepped elastomer cones that cover an unusually wide cable range — trim to the step you need. Large crimp lugs and connectors deform through the rubber, and a cable-tie groove stops cables slipping and relieves strain.
- Protection Up to IP66
- Suits Cables & corrugated conduit
- Strain relief Cable-tie groove

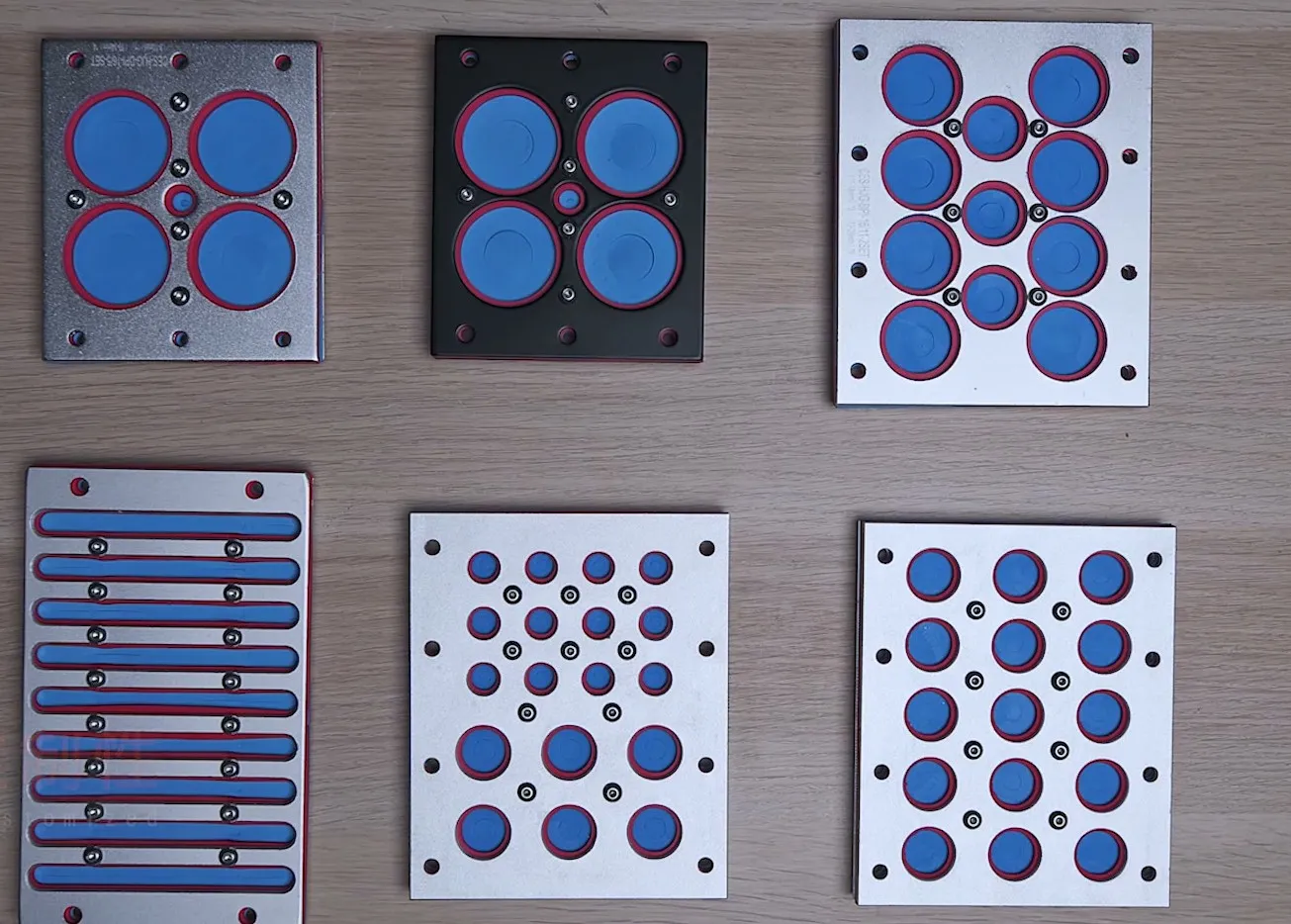

High-Density Custom Entry Plates
Aluminium-framed plates with 700%-stretch seals, drilled to your cable schedule. Half-cut membranes stay sealed until a cable goes through, so spare entries cost nothing — and the frame holds tight when cables flex or are pulled.
- Construction Aluminium alloy frame · super-elastic seal
- Protection Up to IP66
- Layout Drilled to your cable list · fits standard cut-outs

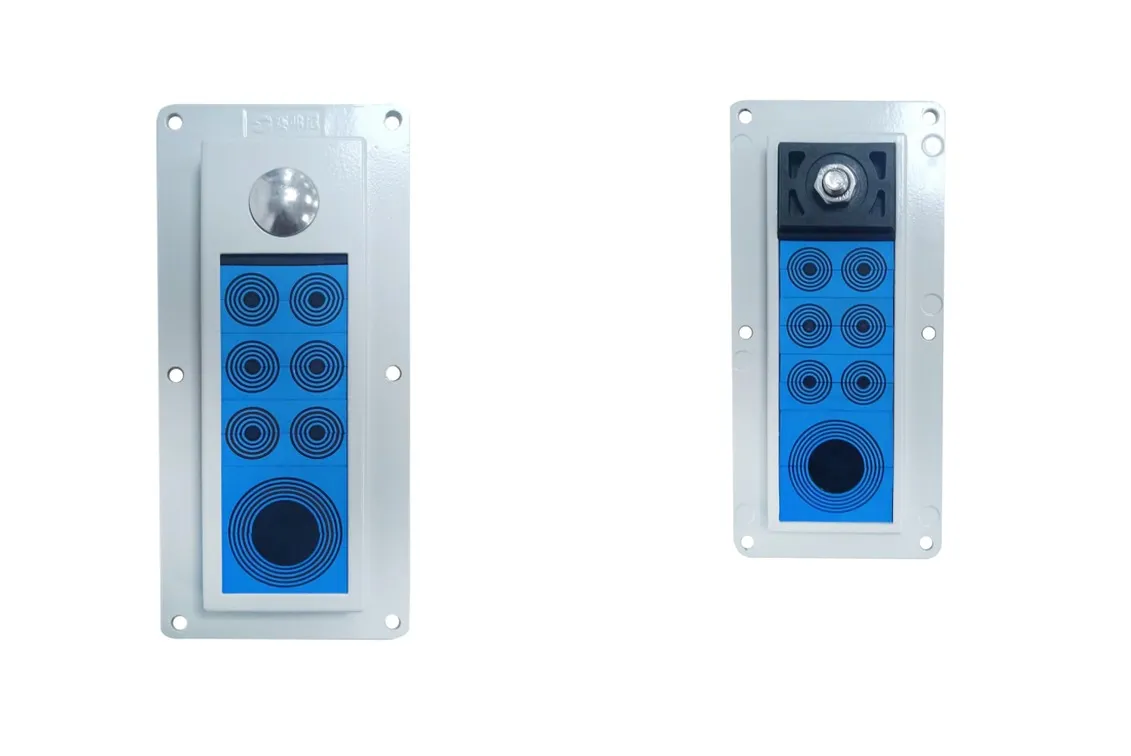

Multi-Layer Cabinet Frames (DBC series)
A compact aluminium frame that brings peel-to-fit multi-layer modules to cabinet walls — peel the layers to match each cable, with no measuring or re-ordering. Third-party tested to IP65.
- Frame Aluminium alloy + rubber · UL 94 V-0 · halogen-free
- Size 80.5 × 173 × 55 mm · cut-out 56 × 149 mm
- Sealing space 40 × 100 mm
- Rating IP65 · −40 °C to +140 °C
Standards & certifications
Typical applications
- Electrical & PLC control cabinets
- Metro & rail equipment cabinets
- Power-utility & nuclear-plant cabinets
- Data centres & telecom
Representative selection — the full range and exact specifications are confirmed on quote. Custom configurations available.
Built and certified to international standards
- UL
- CE
- NEMA 1–13
- IP67
- IP68
- ATEX
- IECEx
- SAA
- RoHS
- UL 94 V-0
- ISO 9001
- CCC
- IK10
- UL
- CE
- NEMA 1–13
- IP67
- IP68
- ATEX
- IECEx
- SAA
- RoHS
- UL 94 V-0
- ISO 9001
- CCC
- IK10
Tell us the job — we’ll spec and quote it
Send us your application, load and site conditions. We’ll come back with the right unit, the certifications you need and a factory-direct price.
