Cabinet · base-station · data-room · battery cooling · 300 W–45 kW

Industrial HVAC & Enclosure Cooling

Cabinet cooling, base-station cooling, data-room cooling and battery-storage cooling for telecom, industrial and power-grid sites — from 300 W DC cabinet units and heat exchangers to 20 kW container air conditioners, 45 kW in-row units and liquid-cooling units for battery shelters.

In this range: Cabinet Air Conditioners — AC Type Cabinet Air Conditioners — DC Type Air Conditioner + Heat Exchanger Combined Cabinet Heat Exchangers — DC Type BTS Split Air Conditioner — DC BTS Air Conditioner + Free Cooling In-Row Air Conditioners — DX Type In-Row Air Conditioners — CW Type Container Air Conditioners — Embedded Mounting Container Air Conditioners — Side Mounting Container Air Conditioners — Top Mounting Liquid Cooling Units

Request a quote Capability brochure

Cabinet Air Conditioners — AC Type

For telecom and industrial outdoor cabinets on AC power. High-efficiency rotary compressor, RS485 port for remote monitoring, high protection level for outdoor use and a wide operating range for hot and cold regions. R134a refrigerant; heating and dehumidification options. 600 W–5 kW.

Power 1~220 VAC ±15% · 50 Hz
Operating range −40 °C to +55 °C · IP55 · R134a
Rated condition L35 °C / L35 °C

Model	Cooling	Heating	W×H×D (mm)
A06HA1E	600 W	500 W	315×546×175
A10HA1E	1000 W	1000 W	446×746×200
A15HA1E	1500 W	1000 W	446×746×200
A20HA1E	2000 W	1000 W	446×746×200
A30HA1E	3000 W	1500 W	485×1150×250
A40HA1E	4000 W	1500 W	485×1150×250
A50HA1E	5000 W	3000 W	600×1300×320

Enquire

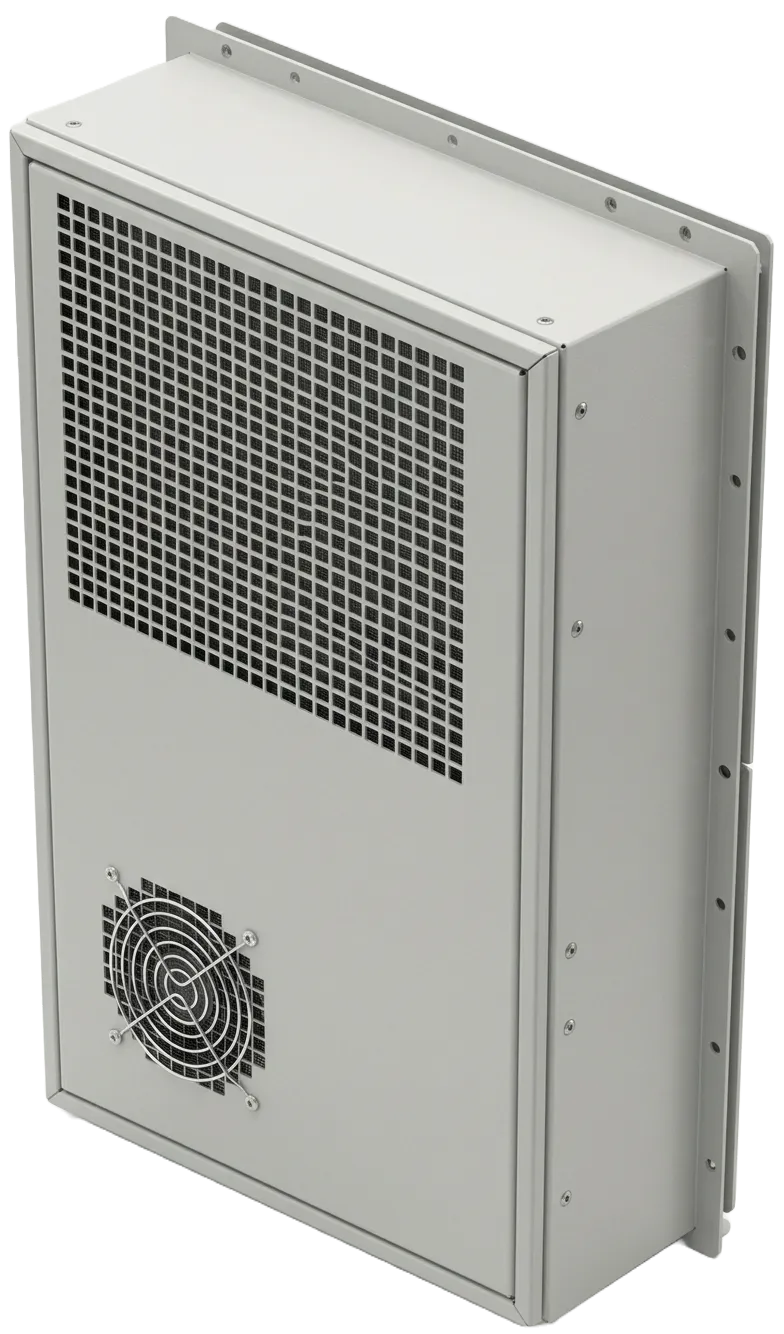

Cabinet Air Conditioners — DC Type

For telecom and industrial outdoor cabinets on DC power. High-efficiency DC-inverter compressor, RS485 port for remote monitoring, high protection level for outdoor use and a wide operating range. R134a refrigerant. 300 W–4 kW.

Power DC 48 V ±20%
Operating range −40 °C to +55 °C · IP55 · R134a
Heating Optional
Rated condition L35 °C / L35 °C

Model	Cooling	W×H×D (mm)
A03NA0E	300 W	315×320×140
A06NA0E	600 W	315×546×175
A10NA0E	1000 W	446×746×200
A15NA0E	1500 W	446×746×200
A20NA0E	2000 W	446×746×200
A30NA0E	3000 W	485×1150×250
A40NA0E	4000 W	485×1150×250

Enquire

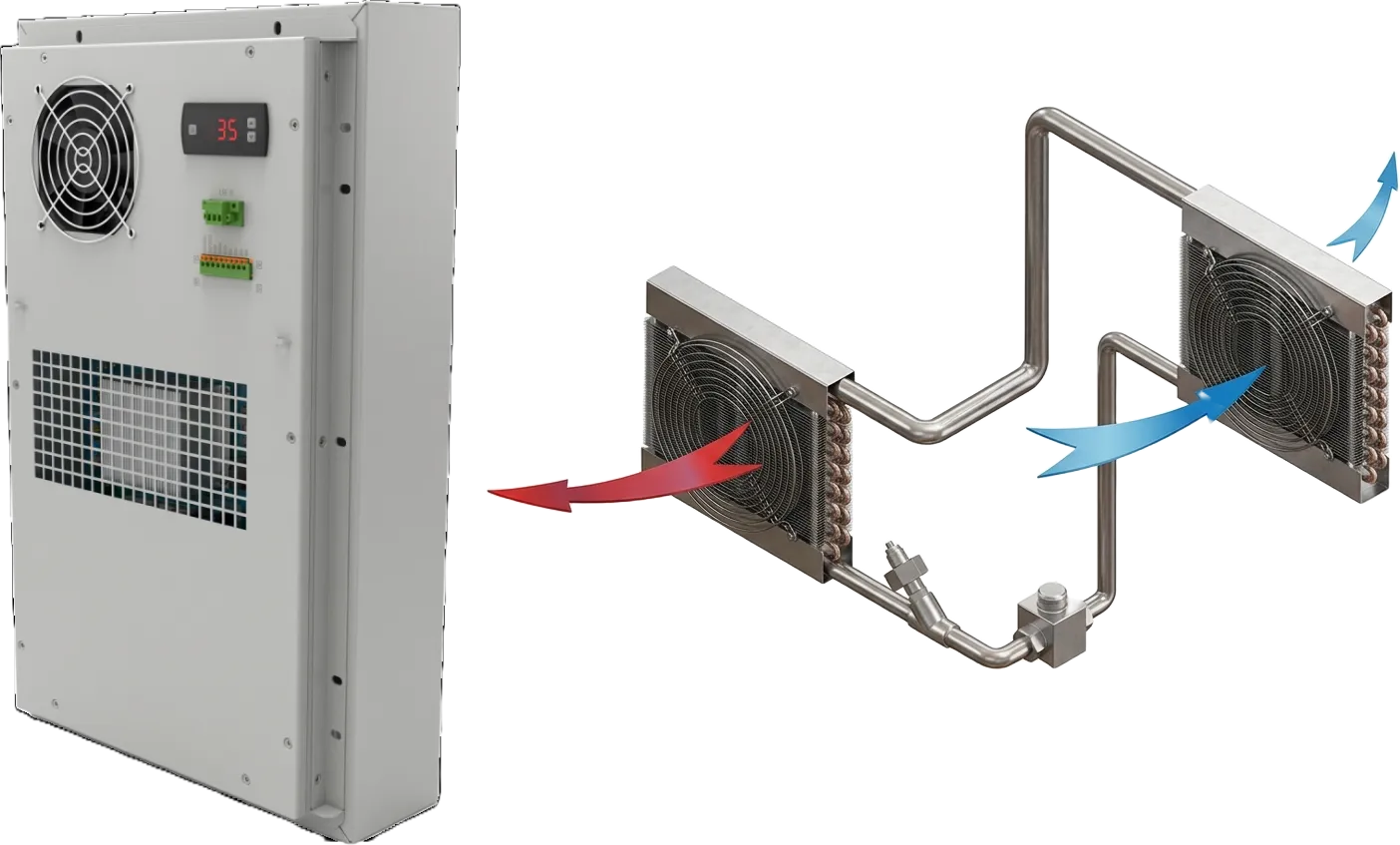

Air Conditioner + Heat Exchanger Combined

Dual-system cooling for telecom outdoor cabinets: a compressor cooling unit plus a siphon heat-pipe exchanger, switching automatically for energy-saving operation. RS485 port for remote monitoring and a wide operating range. R134a refrigerant, IP55. 1.5–3 kW.

Power — HA4E DC 48 V ±20% + 1~230 VAC ±15% · 50 Hz
Power — HA0E DC 48 V ±20%
Operating range −40 °C to +55 °C · IP55 · R134a
Heating Optional

Model (AC+DC / DC)	Cooling	Heat exchange	W×H×D (mm)
AE15HA4E / AE15HA0E	1500 W	60 W/K	446×746×240
AE20HA4E / AE20HA0E	2000 W	80 W/K	446×746×240
AE25HA4E / AE25HA0E	2500 W	100 W/K	446×746×260
AE30HA4E / AE30HA0E	3000 W	120 W/K	485×1150×300

Enquire

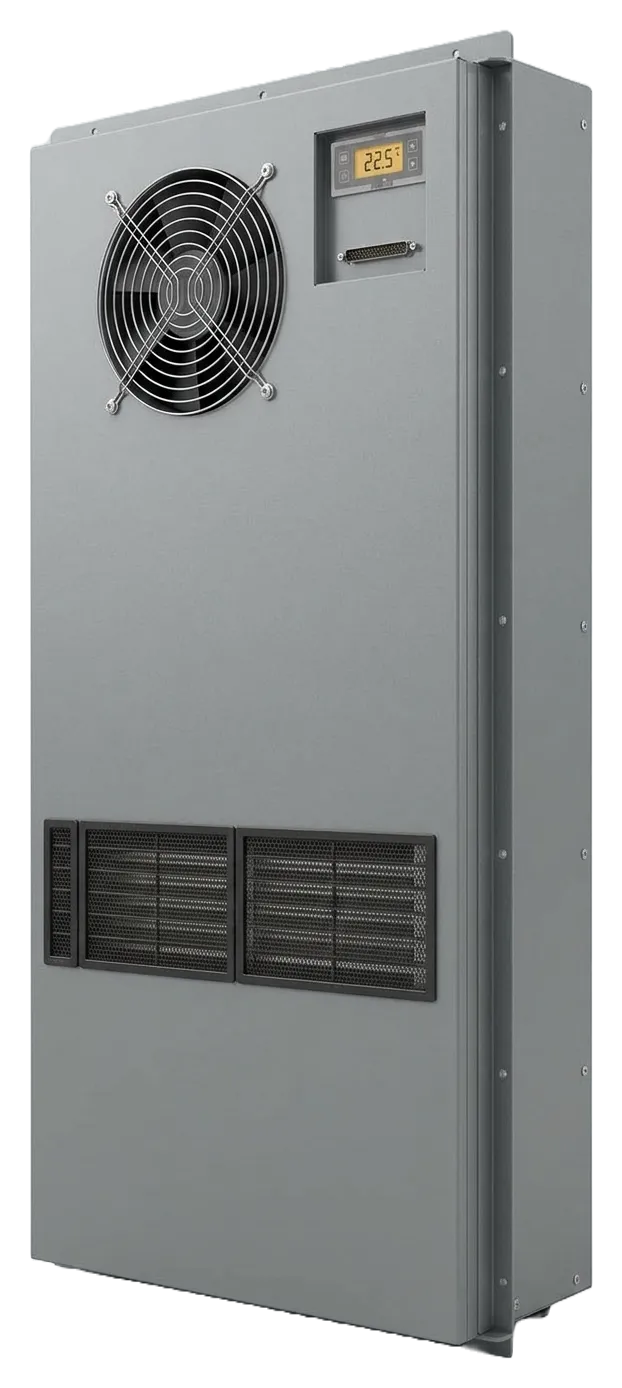

Cabinet Heat Exchangers — DC Type

For telecom and industrial outdoor cabinets on DC power. High-efficiency DC centrifugal fan, RS485 port for remote monitoring, high protection level for outdoor use, a wide operating range and a maintenance-free design; heater optional. 25–260 W/K.

Power DC 48 V ±20%
Operating range −40 °C to +60 °C · IP55
Heat-exchange core Air-to-air aluminium plate
Heating Optional

Model	Heat exchange	W×H×D (mm)
H02NA0E	25 W/K	270×420×165
H08NA0E	80 W/K	400×900×145
H10NA0E	100 W/K	412×990×192
H12NA0E	120 W/K	412×990×192
H15NA0E	150 W/K	518×1246×240
H18NA0E	180 W/K	518×1246×240
H26NA0E	260 W/K	620×1300×240

Enquire

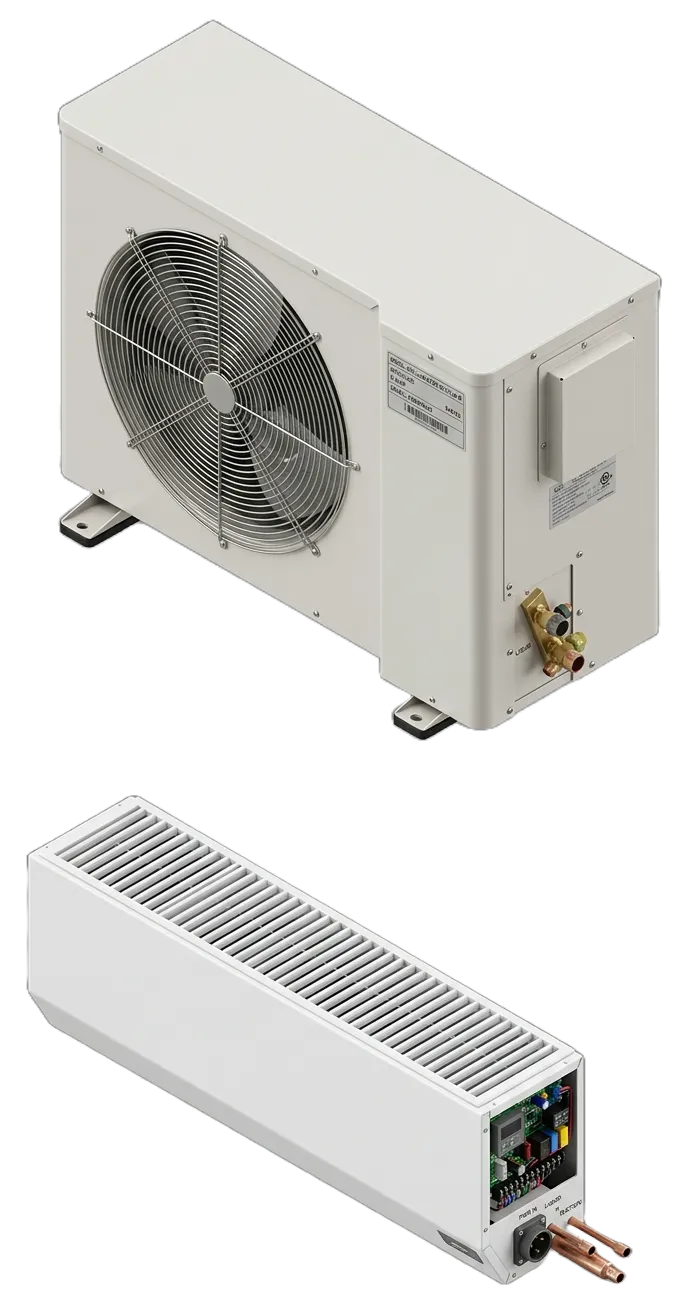

BTS Split Air Conditioner — DC

For telecom base stations and outdoor shelters on DC 48 V power. High-efficiency DC-inverter compressor, RS485 port for remote monitoring, split design and a wide operating range. R134a refrigerant. 4 kW.

A40NA0F 4000 W cooling · DC 48 V ±20% · heating N/A
Dimensions Indoor 950×340×215 · outdoor 730×524×292 mm
Mounting Wall-mounted
Operating range −40 °C to +55 °C · IP55 · R134a
Rated condition L35 °C / L35 °C

Enquire

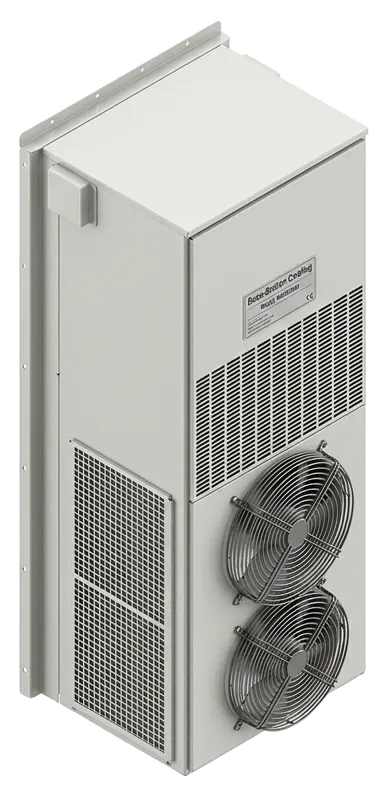

BTS Air Conditioner + Free Cooling

Dual-system cooling for telecom base stations and outdoor shelters: active compressor cooling plus fresh-air free cooling, switching automatically for energy-saving operation. DC-inverter compressor, EC fan and RS485 port; an integrated dust sensor stops fresh-air operation in dusty conditions, an integrated humidity sensor prevents excessive internal humidity, and the intake filter is built in. 12.5–15 kW.

Power 3~380 V ±15% · 50 Hz
Build Fresh-air damper (auto) · G4 filter · wall-mounted
Dimensions W800×H2100×D705 mm
Operating range −40 °C to +45 °C · R410a · heating optional

Model	Cooling (L27 °C / L35 °C)	Air flow
WAF125NA5S	12.5 kW	3500 m³/h
WAF150NA5S	15.0 kW	3800 m³/h

Enquire

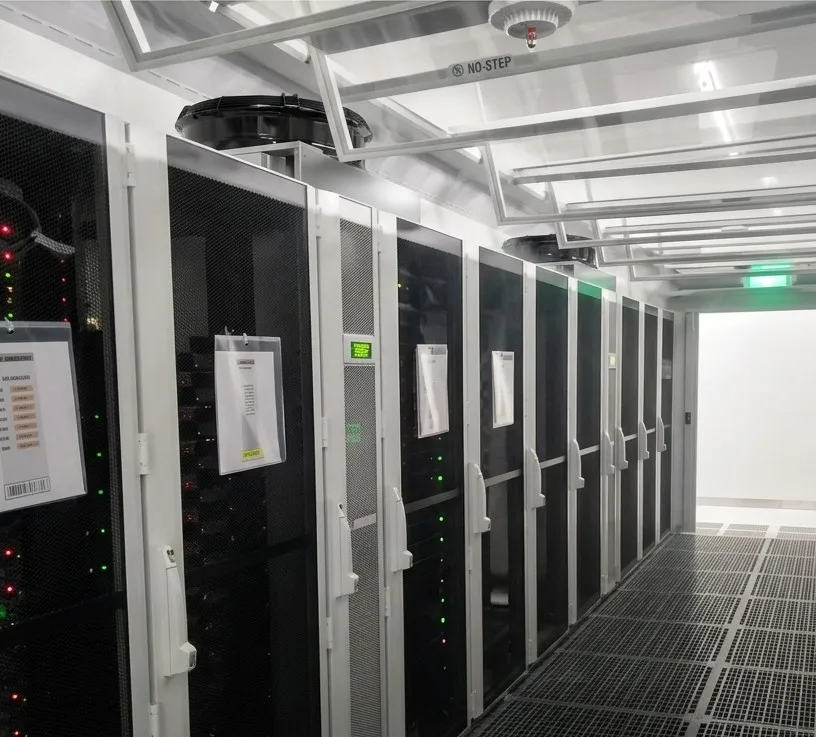

In-Row Air Conditioners — DX Type

Data-room cooling, refrigerant direct-expansion. DC-inverter compressor, EC fan and electronic expansion valve (EEV); RS485 port for remote monitoring and a wide operating range. Humidification, dehumidification and heating optional. 12.5–45 kW.

Power 3~380 V ±15% · 50 Hz
Operating range −30 °C to +45 °C · R410a
Interface · filter LCD touch screen · G4
Heating Optional

Enquire

Model	Total cooling	Sensible	EER	Air flow (m³/h)	Humidification	Indoor W×D×H (mm)
CDA12HA5E	12.5 kW	11.5 kW	3.5	3000	3 kg/h	300×1200×2000
CDA25HA5E	25 kW	22.0 kW	3.3	5000	3 kg/h	600×1200×2000
CDA35HA5E	35 kW	32.0 kW	3.4	7000	3 kg/h	600×1200×2000
CDA45HA5E	45 kW	40.5 kW	3.3	9500	6 kg/h	600×1200×2000

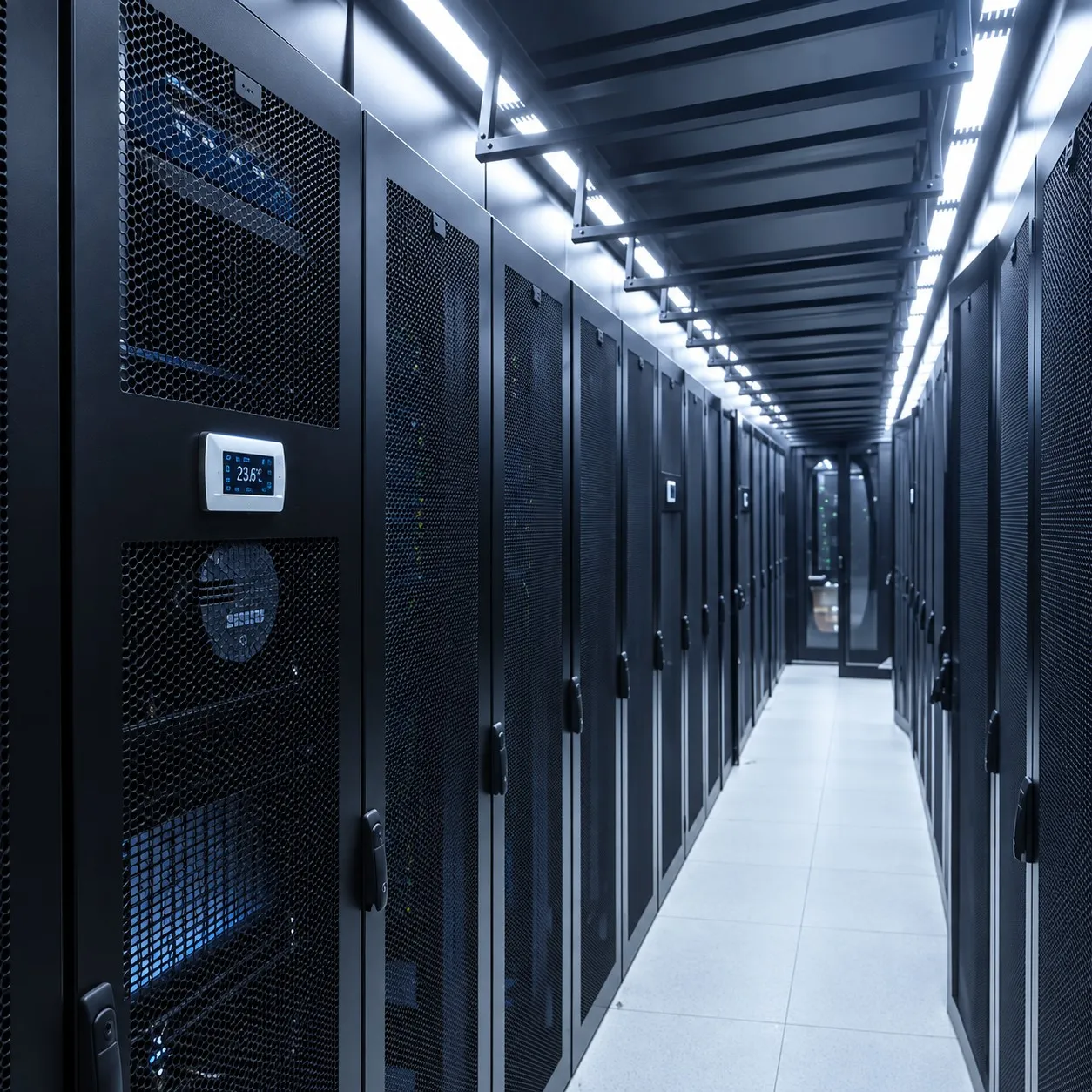

In-Row Air Conditioners — CW Type

Data-room cooling, chilled-water type. 2-way electric proportional control valve and EC fan; suits 18 °C water supply for more energy saving; RS485 port for remote monitoring. Humidification, dehumidification and heating optional. 12.5–45 kW.

Water supply 7–18 °C
Interface · filter LCD touch screen · G4
Heating Optional

Enquire

Model	Total cooling	Sensible	EER	Air flow (m³/h)	Humidification	Power	Indoor W×D×H (mm)
CWA12HA5E	12.5 kW	11.8 kW	3.5	2800	3 kg/h	1~230 V	300×1200×2000
CWA25HA5E	25 kW	23.0 kW	3.3	4800	3 kg/h	1~230 V	600×1200×2000
CWA35HA5E	35 kW	33.0 kW	3.4	7000	3 kg/h	3~380 V	600×1200×2000
CWA45HA5E	45 kW	41.0 kW	3.3	9000	6 kg/h	3~380 V	600×1200×2000

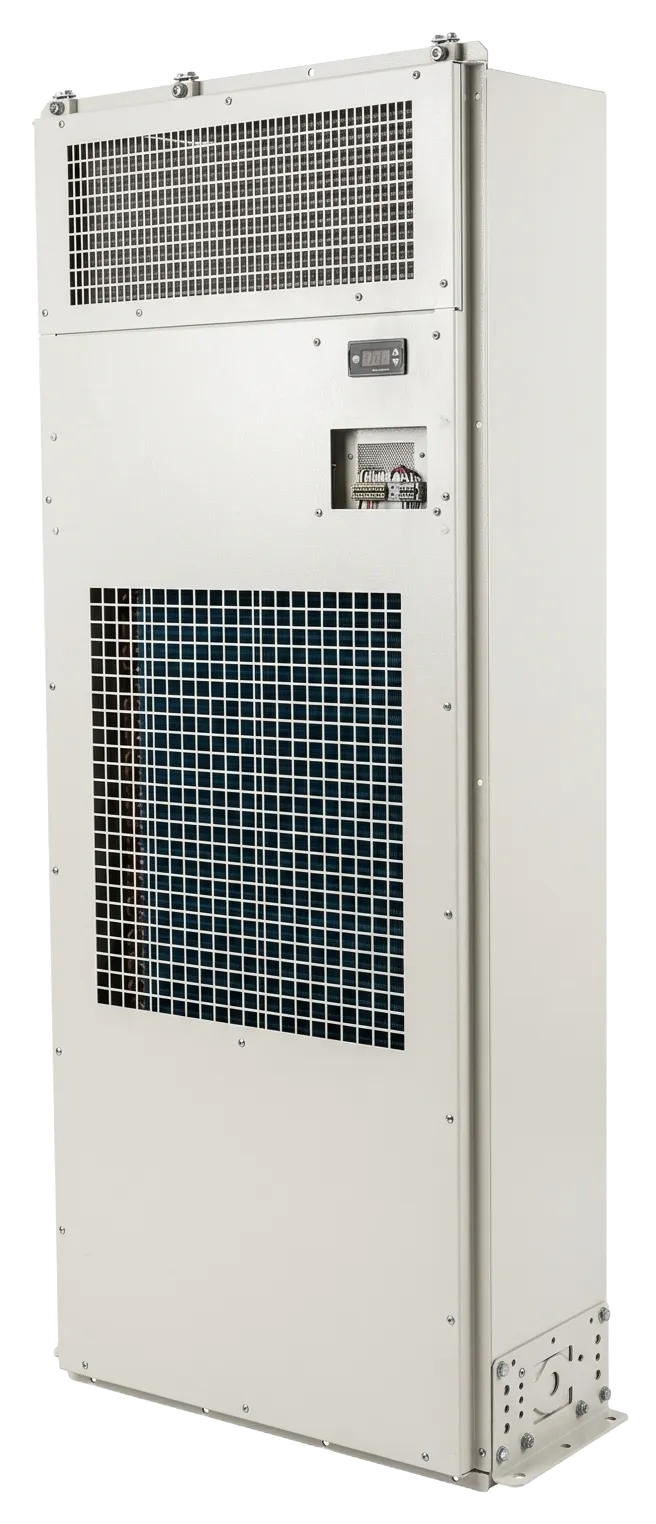

Container Air Conditioners — Embedded Mounting

For industrial and battery energy-storage shelters, semi-embedded mounting. High-efficiency rotary compressor, RS485 port and environment-friendly refrigerant; high protection level for outdoor use; heating, dehumidification and an ambient intake filter integrated. AF models use a DC-inverter compressor. 3–20 kW.

Protection IP55
Operating range −40 °C to +45 °C · R410a (A30HC1E: −40 °C to +55 °C · R134a)

Enquire

Model	Cooling	Heating	Power	Rated condition	W×H×D (mm)
A30HC1E	3.0 kW	2.0 kW	1~230 V	L35 / L35 °C	500×1300×250
A50HC1E	5.0 kW	3.0 kW	1~230 V	L35 / L35 °C	600×1300×320
A75HC1E	7.5 kW	3.0 kW	1~230 V	L35 / L35 °C	660×1600×400
A100HC1E	10.0 kW	6.0 kW	1~230 V	L35 / L35 °C	660×1600×400
A125HC5E / AF125HC5E	12.5 kW	6.0 kW	3~380 V	L27 / L35 °C	800×2100×600
A150HC5E / AF150HC5E	15.0 kW	9.0 kW	3~380 V	L27 / L35 °C	800×2100×600
A200HC5E / AF200HC5E	20.0 kW	9.0 kW	3~380 V	L27 / L35 °C	800×2100×600

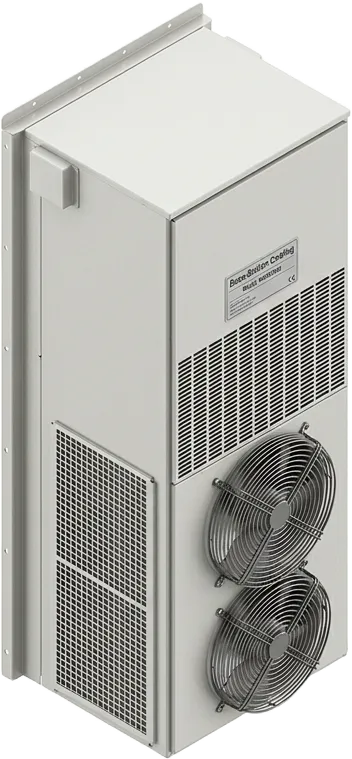

Container Air Conditioners — Side Mounting

For industrial and battery energy-storage shelters, side (wall) mounting. High-efficiency rotary compressor, RS485 port and environment-friendly refrigerant; high protection level for outdoor use; heating, dehumidification and an ambient intake filter integrated. AF models use a DC-inverter compressor. 7.5–20 kW.

Operating range −40 °C to +45 °C · IP55 · R410a

Enquire

Model	Cooling	Heating	Power	Rated condition	W×H×D (mm)
A75HC1S	7.5 kW	3.0 kW	1~230 V	L35 / L35 °C	660×1600×400
A10HC1S	10.0 kW	6.0 kW	1~230 V	L35 / L35 °C	660×1600×400
A120HC1E	12.0 kW	6.0 kW	1~230 V	L35 / L35 °C	660×1600×400
A125HC5S / AF125HC5S	12.5 kW	6.0 kW	3~380 V	L27 / L35 °C	800×2100×705
A150HC5S	15.0 kW	9.0 kW	3~380 V	L27 / L35 °C	800×2100×705
AF150HC5S	15.0 kW	6.0 kW	3~380 V	L27 / L35 °C	800×2100×703
A200HC5S / AF200HC5S	20.0 kW	9.0 kW	3~380 V	L27 / L35 °C	800×2100×705

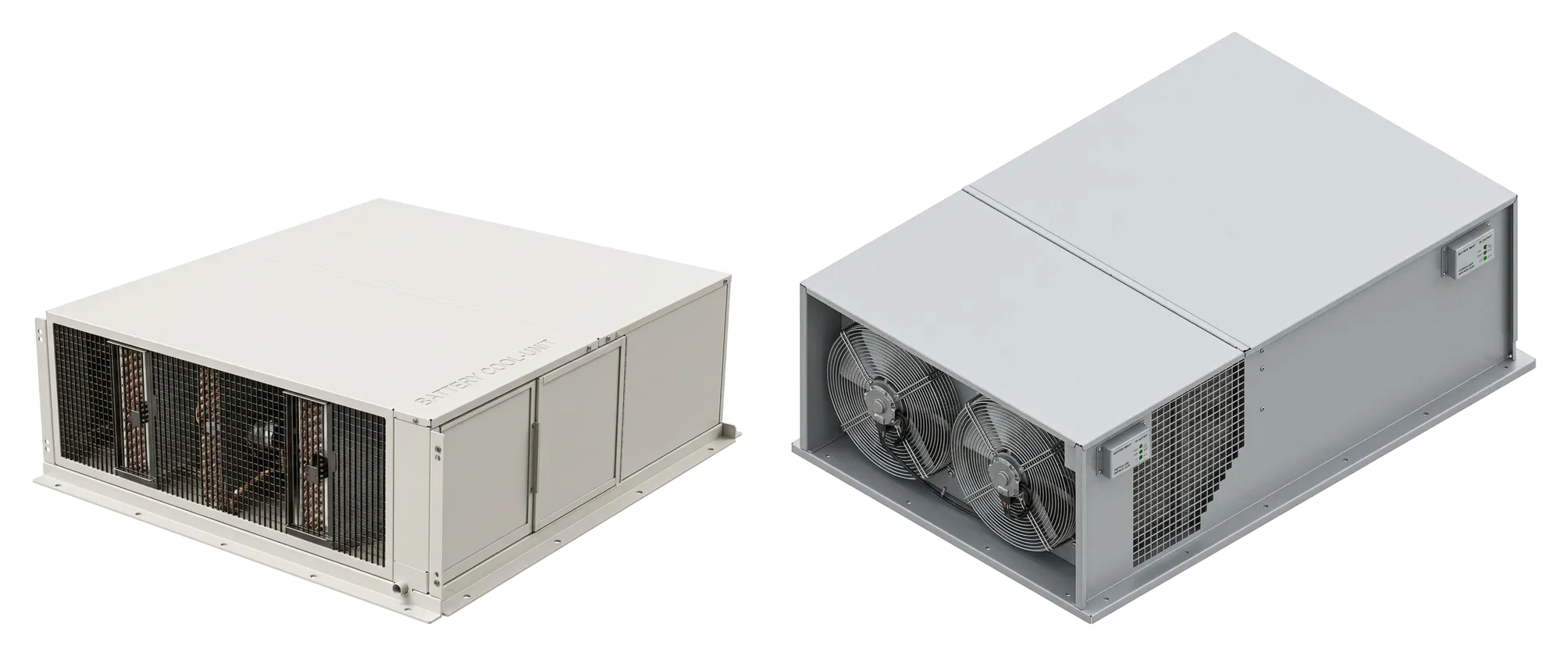

Container Air Conditioners — Top Mounting

For industrial and battery energy-storage shelters, roof mounting. High-efficiency DC-inverter rotary compressor, RS485 port and environment-friendly refrigerant; high protection level for outdoor use; heating, dehumidification and an ambient intake filter integrated. 3–5 kW and 12.5–20 kW.

Operating range −40 °C to +45 °C · IP55 · R410a

Enquire

Model	Cooling	Heating	Air flow	Power	Rated condition	W×D×H (mm)
AF30HC1T	3.0 kW	1.5 kW	1000 m³/h	1~230 V	L25 / L35 °C	870×1000×350
AF40HC1T	4.0 kW	2.0 kW	2000 m³/h	1~230 V	L25 / L35 °C	870×1000×350
AF50HC1T	5.0 kW	2.0 kW	2000 m³/h	1~230 V	L25 / L35 °C	870×1000×350
AF125HC5T	12.5 kW	6.0 kW	3600 m³/h	3~380 V	L27 / L35 °C	1200×1780×603
AF150HC5T	15.0 kW	9.0 kW	5000 m³/h	3~380 V	L27 / L35 °C	1200×1780×603
AF200HC5T	20.0 kW	9.0 kW	5500 m³/h	3~380 V	L27 / L35 °C	1200×1780×603

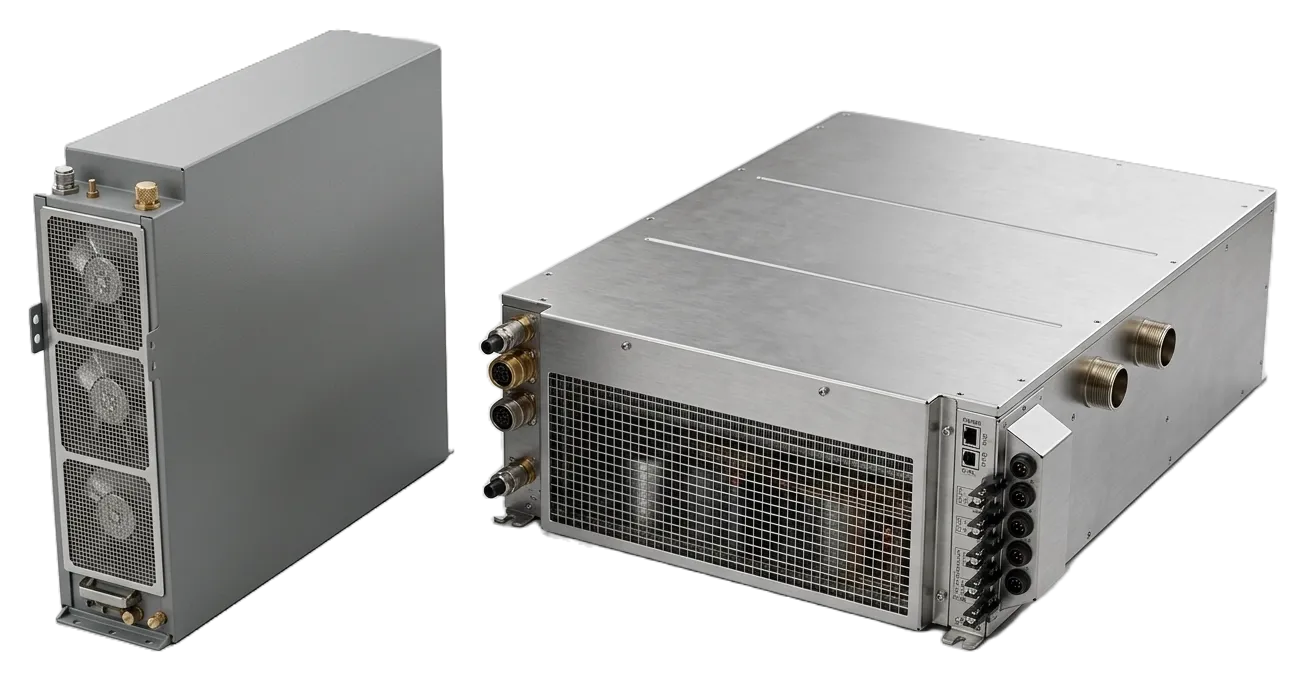

Liquid Cooling Units

For battery energy-storage shelters with liquid cooling. High-efficiency inverter compressor, RS485/CAN port and environment-friendly refrigerant; a wide operating range for many regions; liquid heating, optional shelter dehumidification and an ambient intake filter. LF models use a DC-inverter compressor. 3–8 kW.

Power 1~230 V ±15% · 50/60 Hz
Rated condition W 18 °C / A 35 °C
Operating range −30 °C to +55 °C · electrics IP55 · R134a
Pipe connection NW26 quick connectors

Enquire

Model	Cooling	Heating	Water flow	Mounting	Dehumidification	W×H×D (mm)
LF30HA1T	3.0 kW	1.0 kW	25 L/min	Top	Optional	702×280×932
LF50HA1T	5.0 kW	2.0 kW	45 L/min	Top	Optional	702×280×932
LF30HA1B	3.0 kW	1.0 kW	25 L/min	Vertical	N/A	275×800×1100
LF50HA1B	5.0 kW	2.0 kW	45 L/min	Vertical	N/A	275×800×1100
LF80HA1B	8.0 kW	2.0 kW	50 L/min	Vertical	N/A	275×1040×1150

Standards & certifications

IP55 RS485 · CAN R134a / R410a DC 48 V & AC power DC-inverter compressors EC fans −40 °C…+60 °C

Typical applications

Telecom cabinets & base stations
Industrial automation cabinets
Power-grid equipment
Data rooms
Battery energy-storage shelters

Representative selection — the full range and exact specifications are confirmed on quote. Custom configurations available.
