Tracked · flipper · wheeled · ROS-ready · 3 kg to 520 kg
Mobile Robot & AGV Platforms
Mobile robot chassis and complete mission robots — from light tracked and wheeled development bases to flipper-track stair climbers and 500 kg-class heavy platforms. We integrate the payload, sensors, autonomy and comms locally, so you get a robot that does the job, not just a chassis.

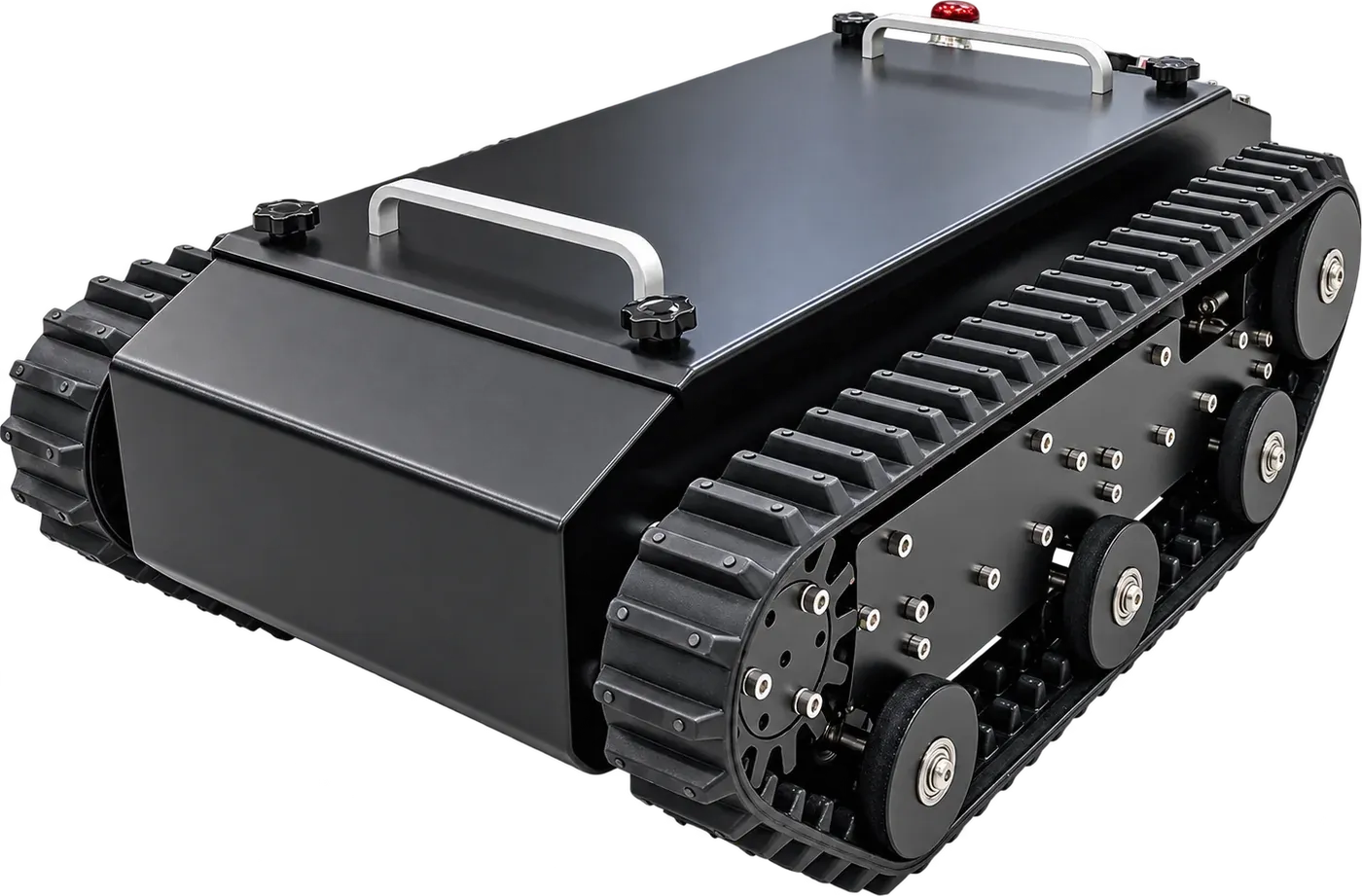

Tracked Platforms — Light & Medium
Modular tracked chassis for robot development, payload integration and rough-terrain work — from a 17 kg base to a 120 kg-payload outdoor platform. Open CAN interface, with IP54 or IP66 protection depending on the model.
- Interface CAN · custom interfaces on request
- Built for Development, inspection and payload integration
| Model | Kerb weight | Payload | Speed | Max. obstacle | Protection |
|---|---|---|---|---|---|
| TR400 | 17 kg | 20 kg | 3.6 km/h | 80 mm | IP54 / IP66 |

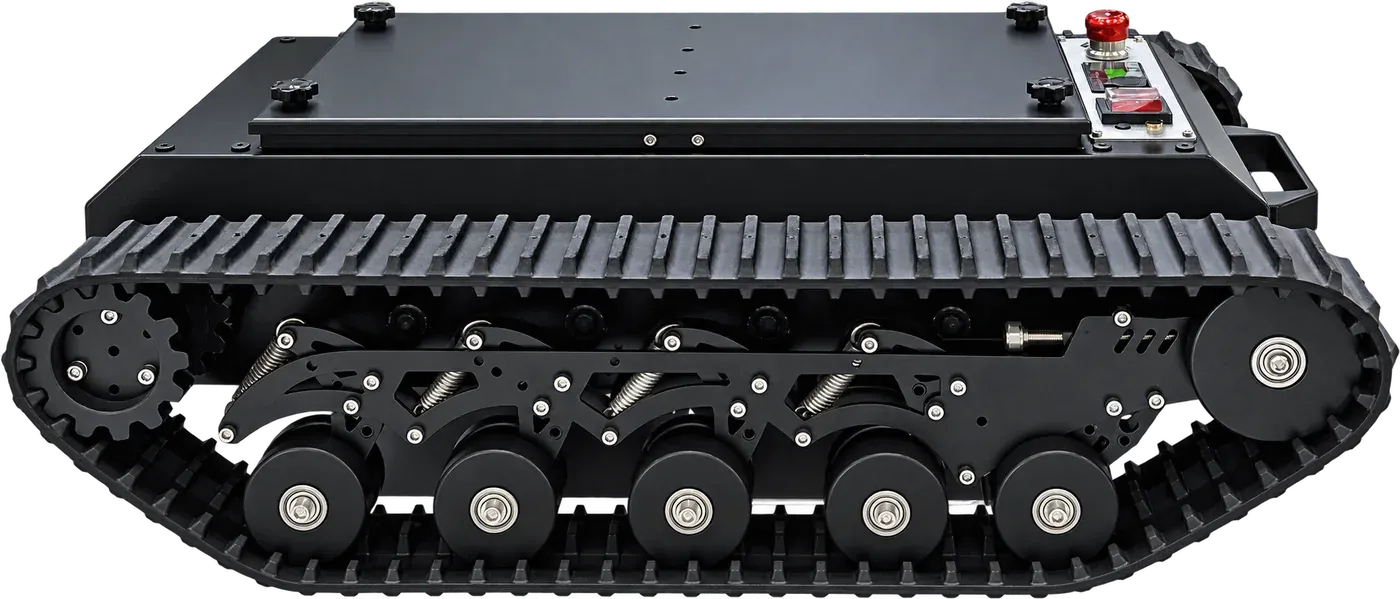

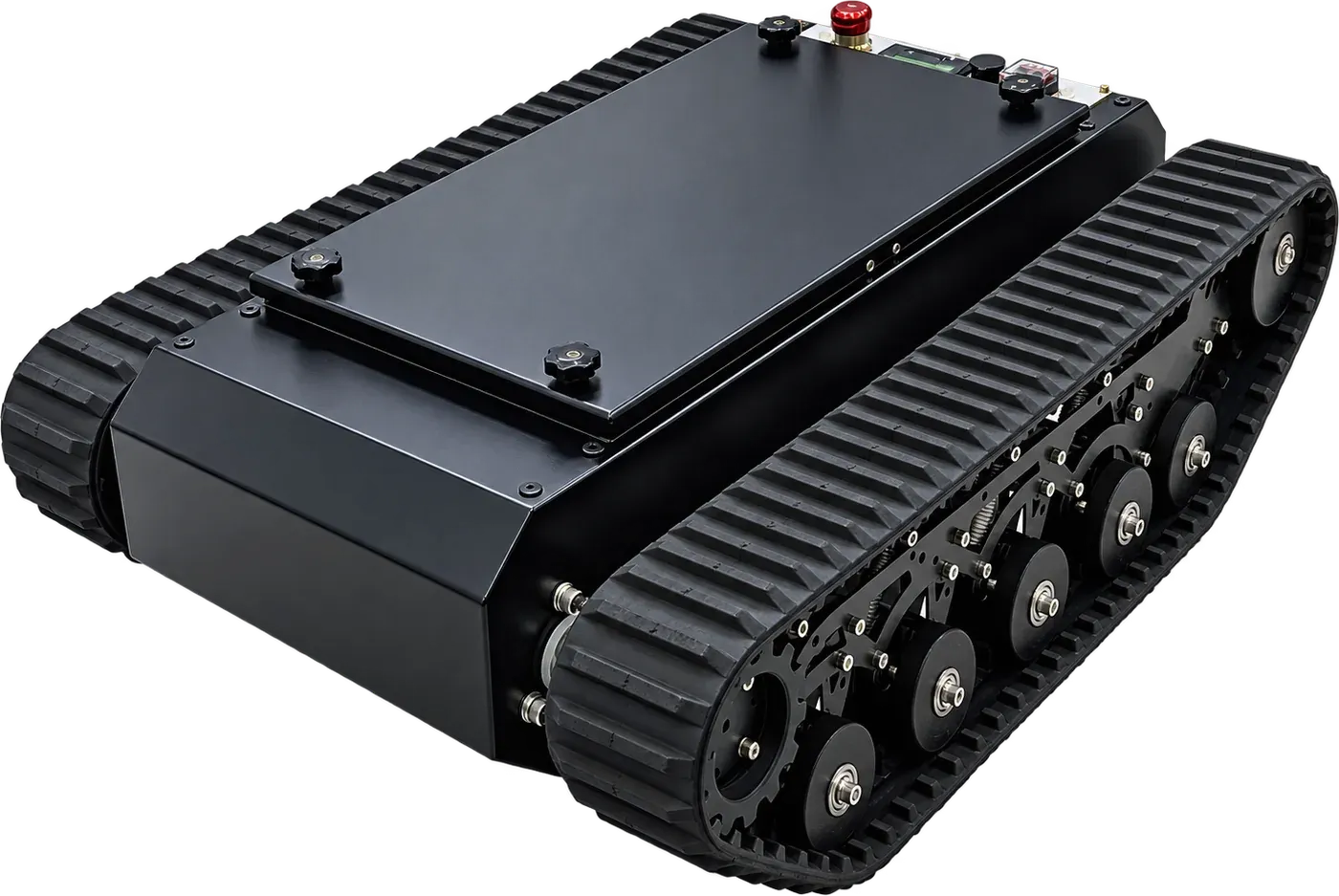

| TR500 | 22 kg | 30 kg | 4.2 km/h | 100 mm | IP54 / IP66 |

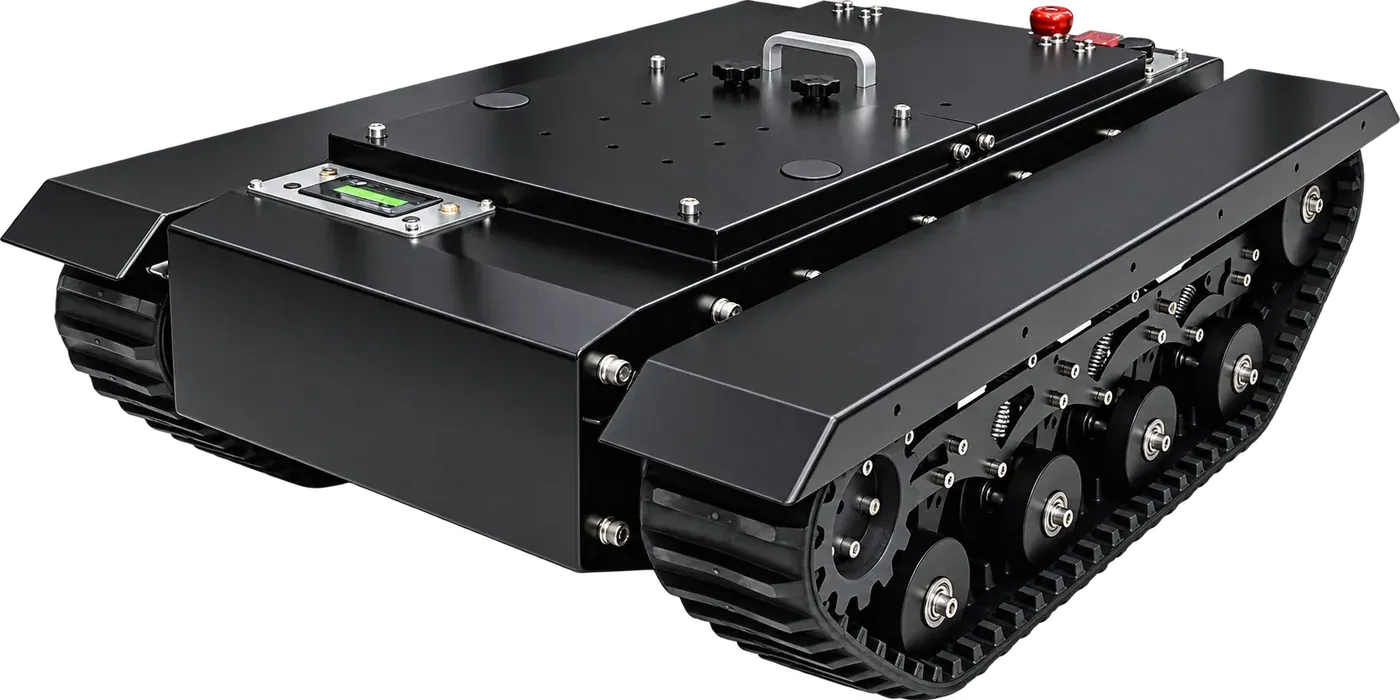

| TR500S | 27 kg | 30 kg | 3.6 km/h | 80 mm | IP54 / IP66 |

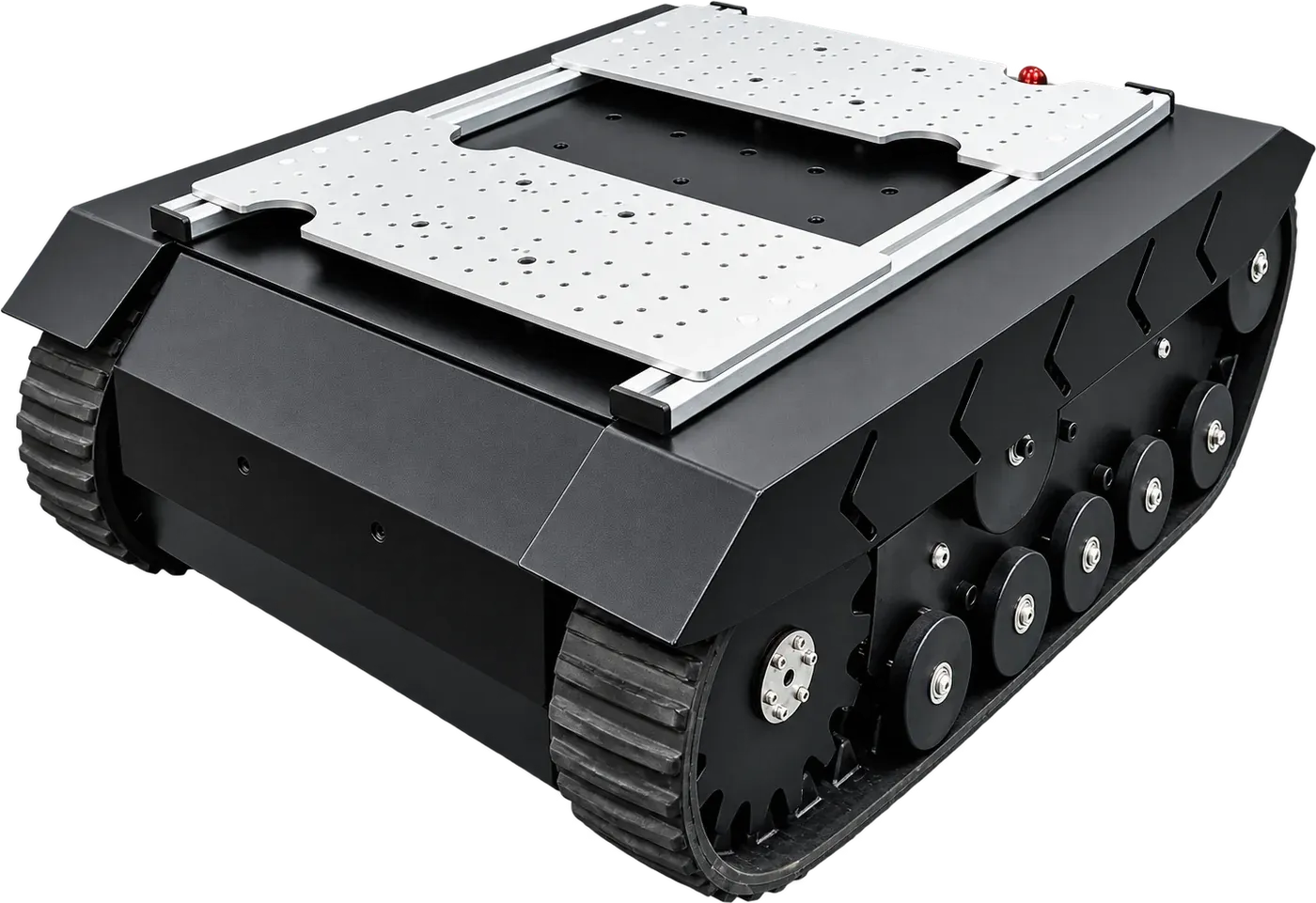

| TR600 WP | ≈95 kg | 120 kg | 7.2 km/h | 100 mm | IP54 / IP66 |

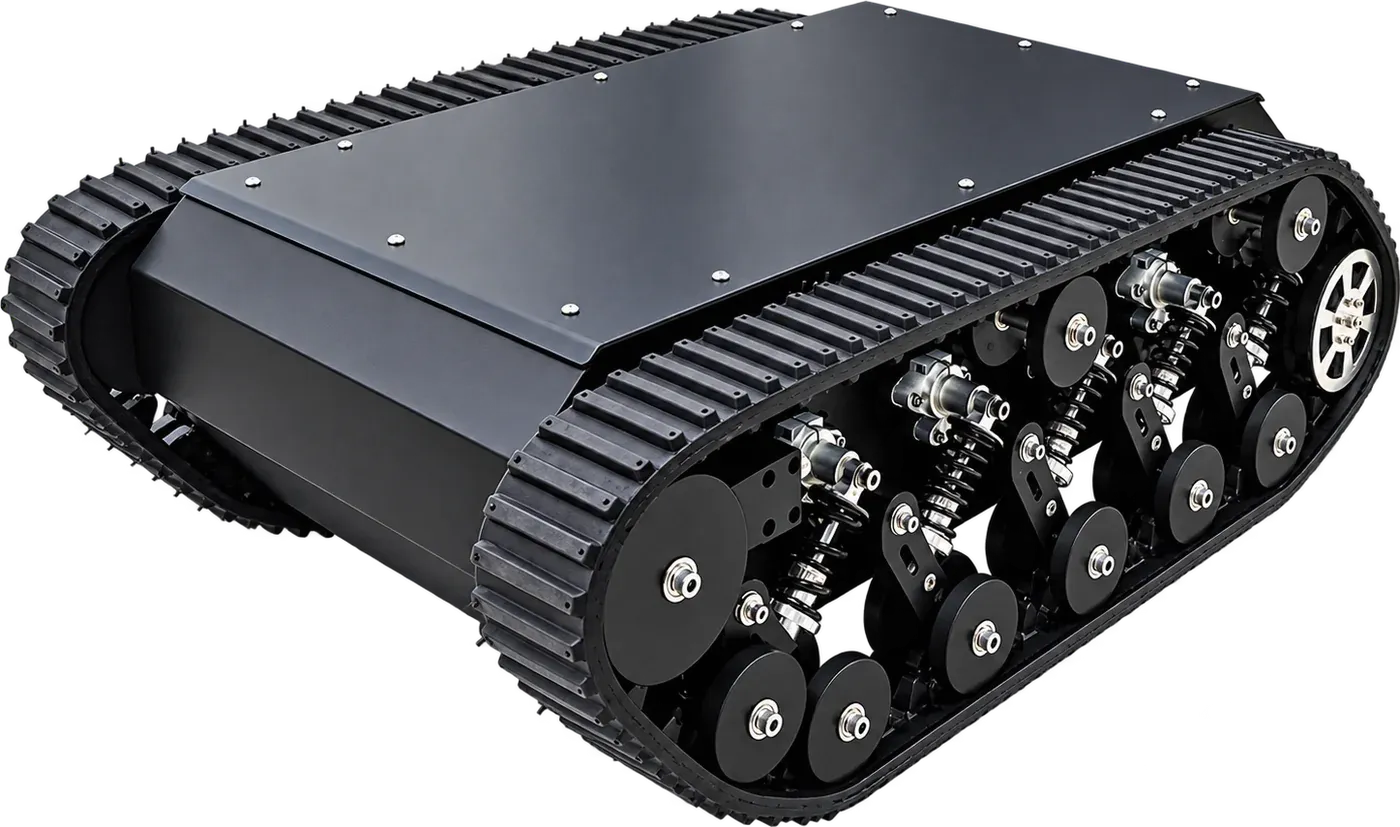

| TR600S | ≈80 kg | 80 kg | 7.2 km/h | 180 mm | IP66 |

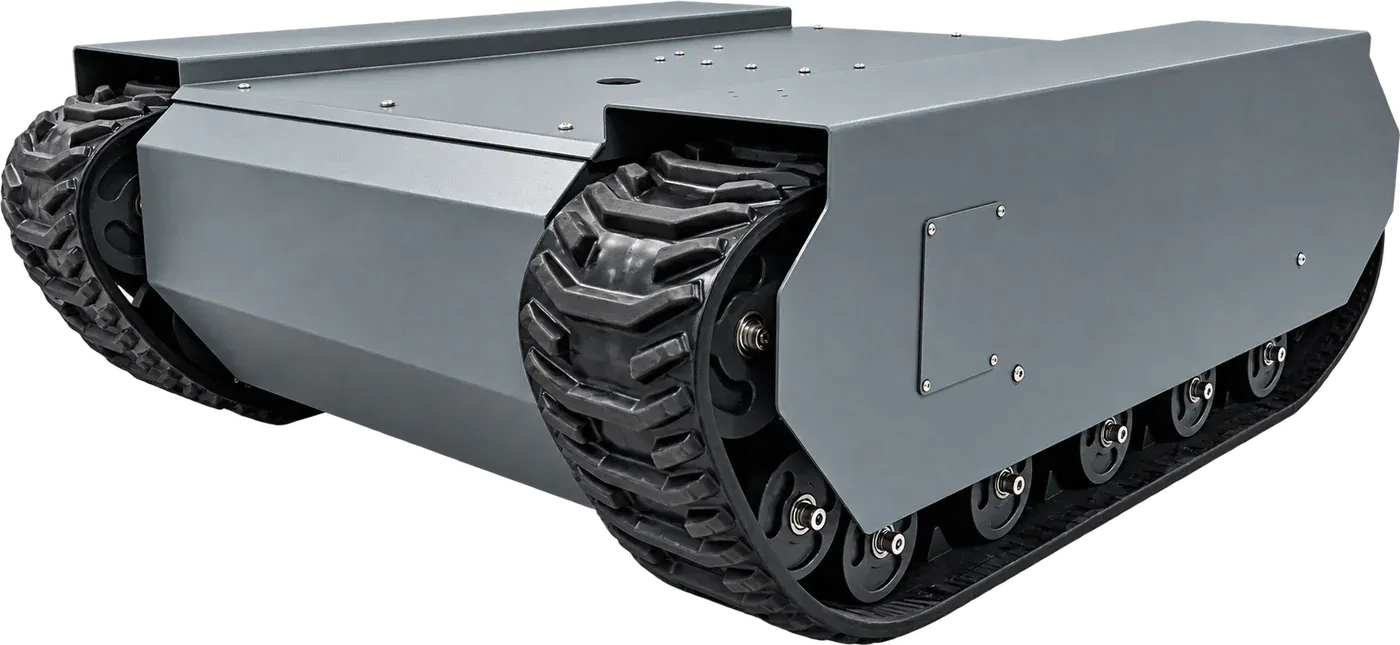

| TR600SW | ≈120 kg | 120 kg | 7.2 km/h | 180 mm | IP66 |
The range
Flipper-Track Platforms
Flipper tracks change the robot’s contact with the ground, so it climbs stairs, steps, kerbs and trenches while staying stable — and gives arms and camera masts a steadier working stance. From a 23 kg stair climber to a platform that clears 640 mm.
- Terrain Stairs · rubble · thresholds · high drops
- Assisted climbing Pairs with vision and attitude sensors
| Model | Kerb weight | Payload | Speed | Max. obstacle | Protection |
|---|---|---|---|---|---|

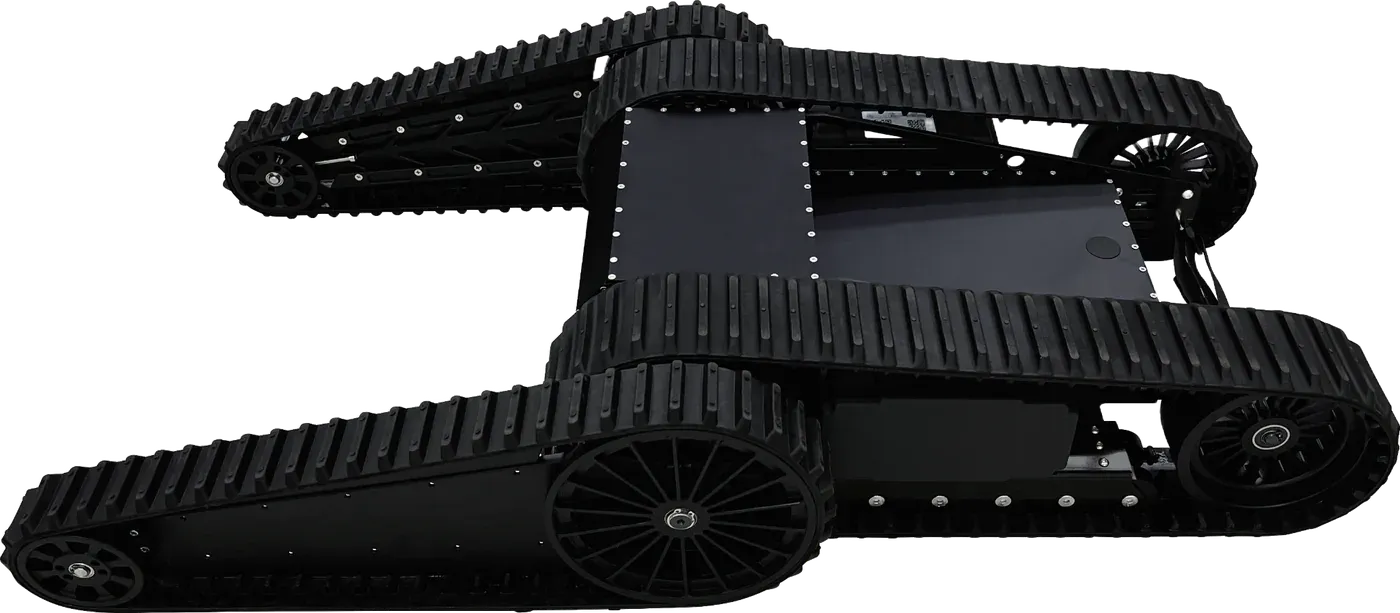

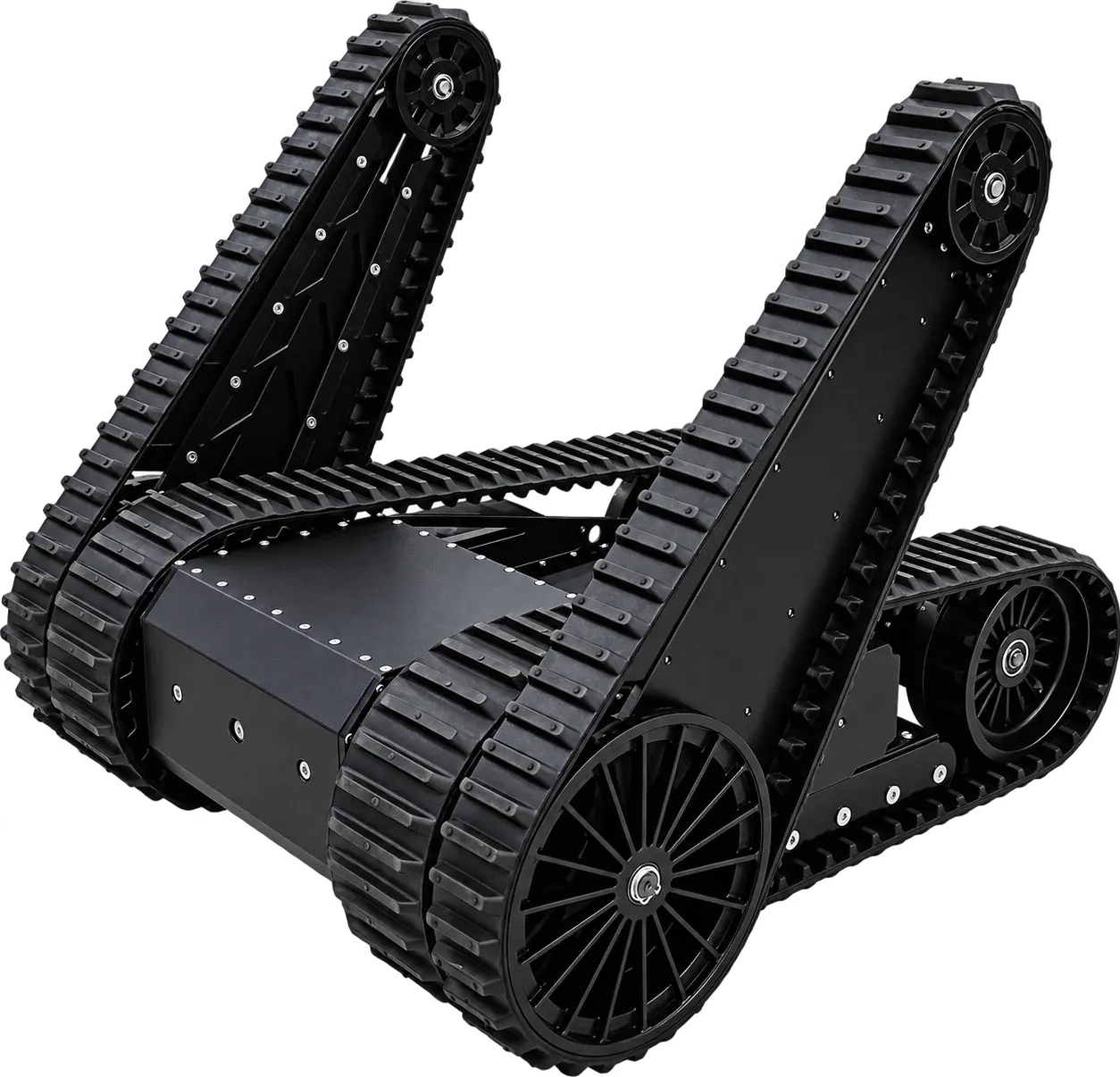

| TR700 MINI | ≈23 kg | 10 kg | 5.4 km/h | 250 mm | IP54 / IP66 |

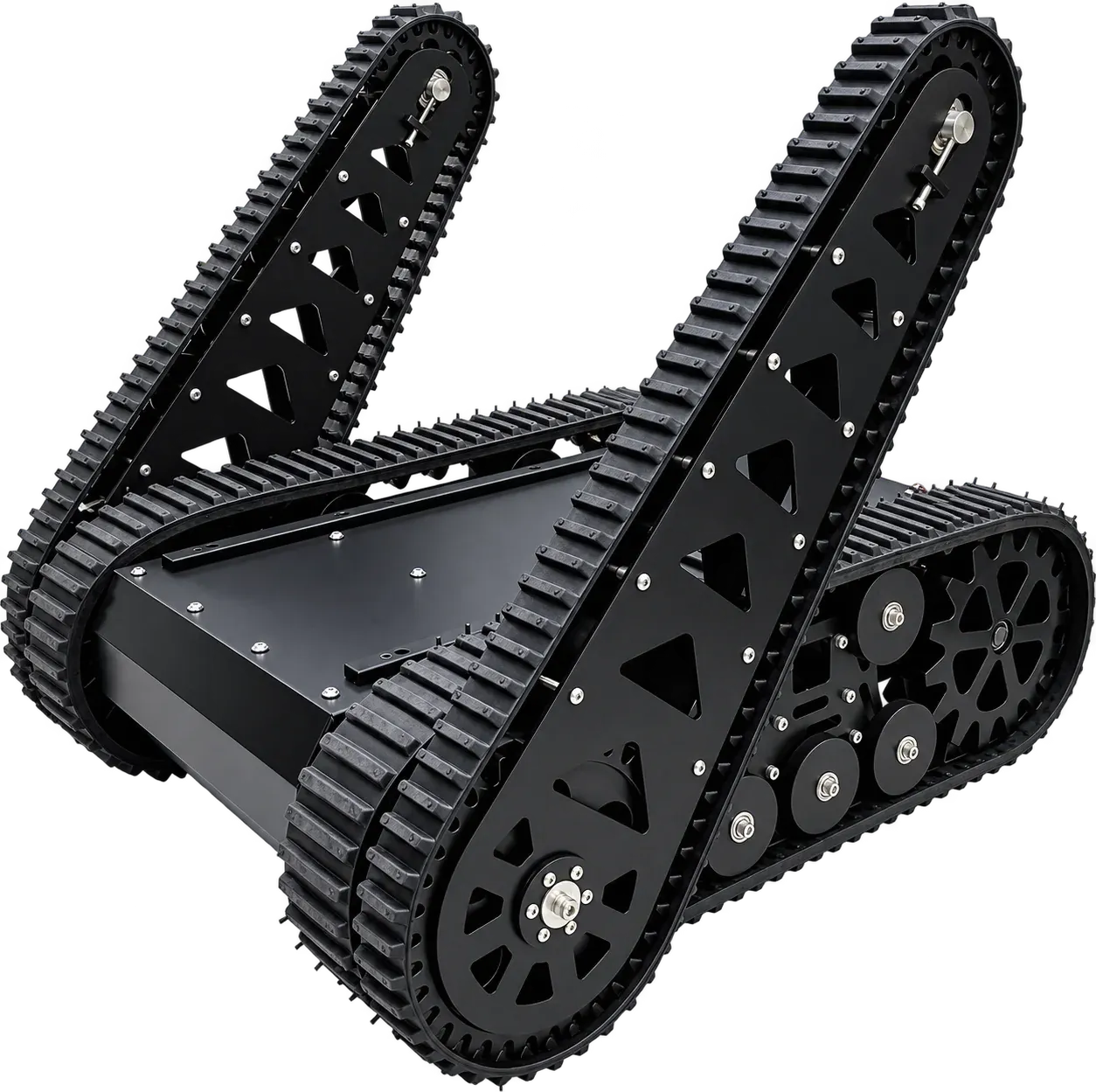

| TR700 | ≈80 kg | 50 kg | 3.6 km/h | 370 mm | IP54 / IP66 |

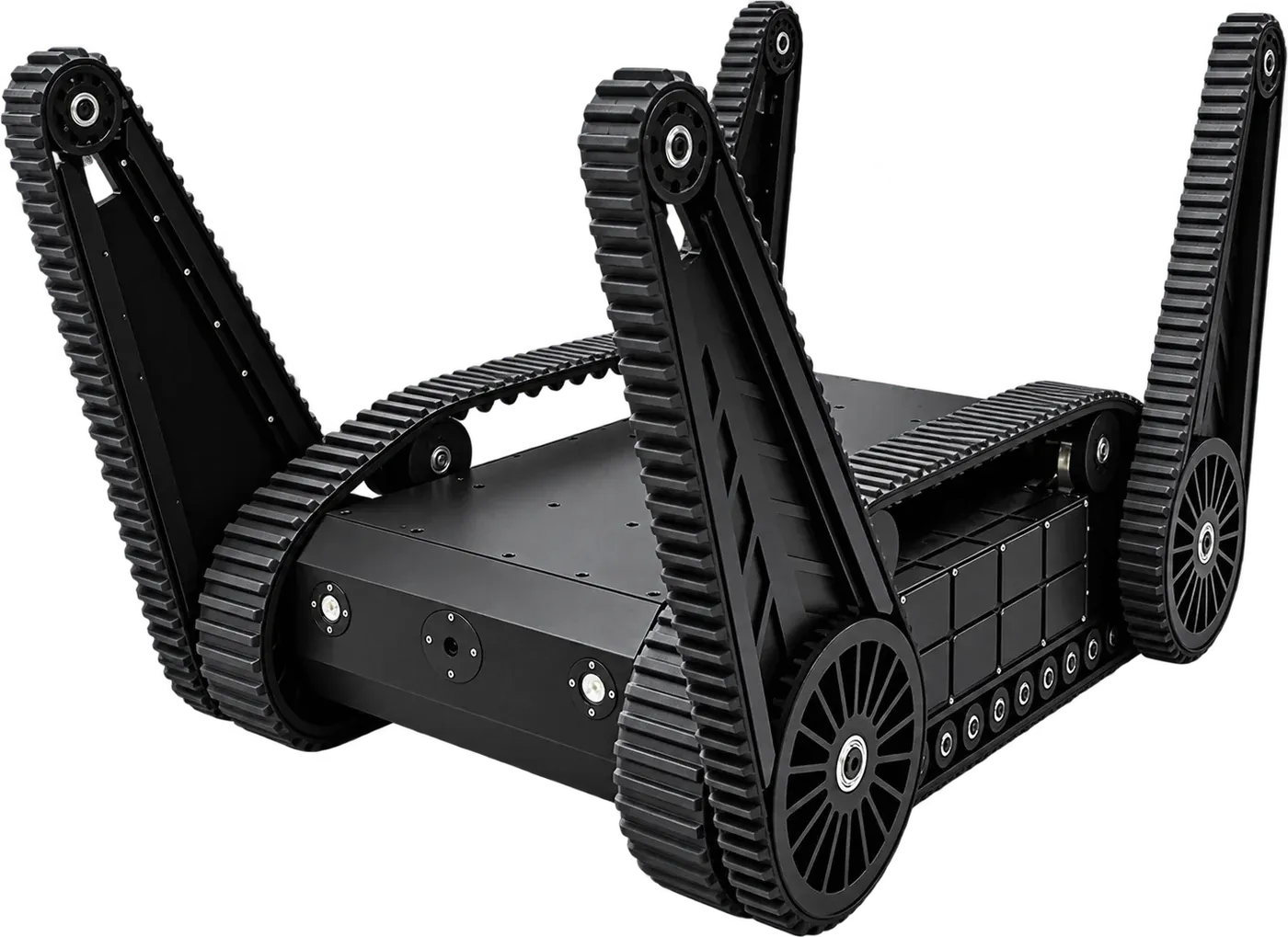

| TR800 | ≈122 kg | 80 kg | 7.2 km/h | 640 mm | IP65 |
The range
Heavy-Duty Tracked Platforms
For large sensor masts, firefighting monitors, heavy manipulators, site transport and long outdoor missions — 100 kg to 300 kg payloads and up to 12 km/h.
- TS6.0 versions Standard: 0–5.4 km/h, 300 kg · high-speed: up to 18 km/h, 100 kg
| Model | Kerb weight | Payload | Speed | Max. obstacle | Protection |
|---|---|---|---|---|---|

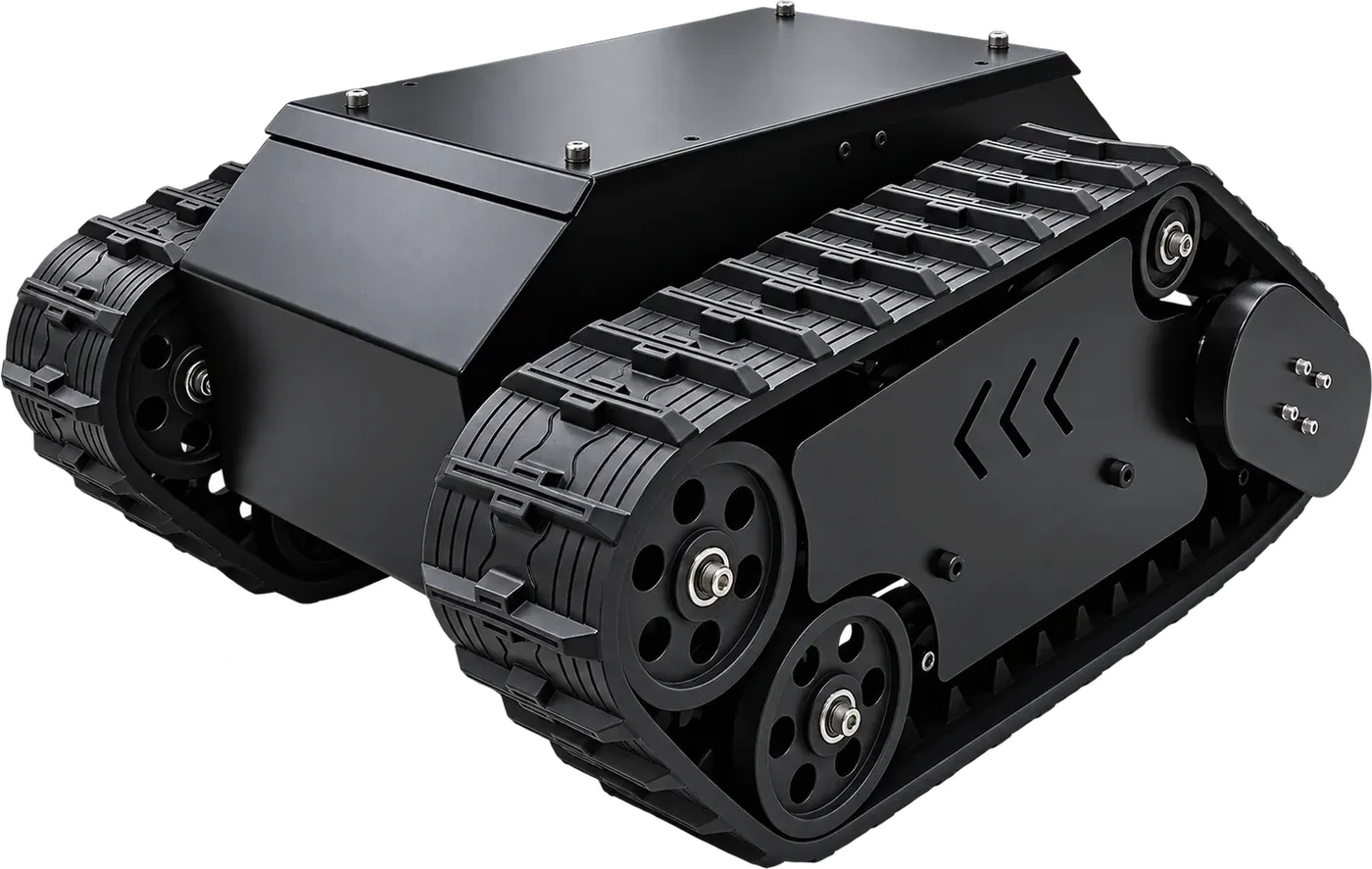

| TS5.0 | ≈145 kg | 100 kg | 5.4 km/h | 180 mm | IP65 |

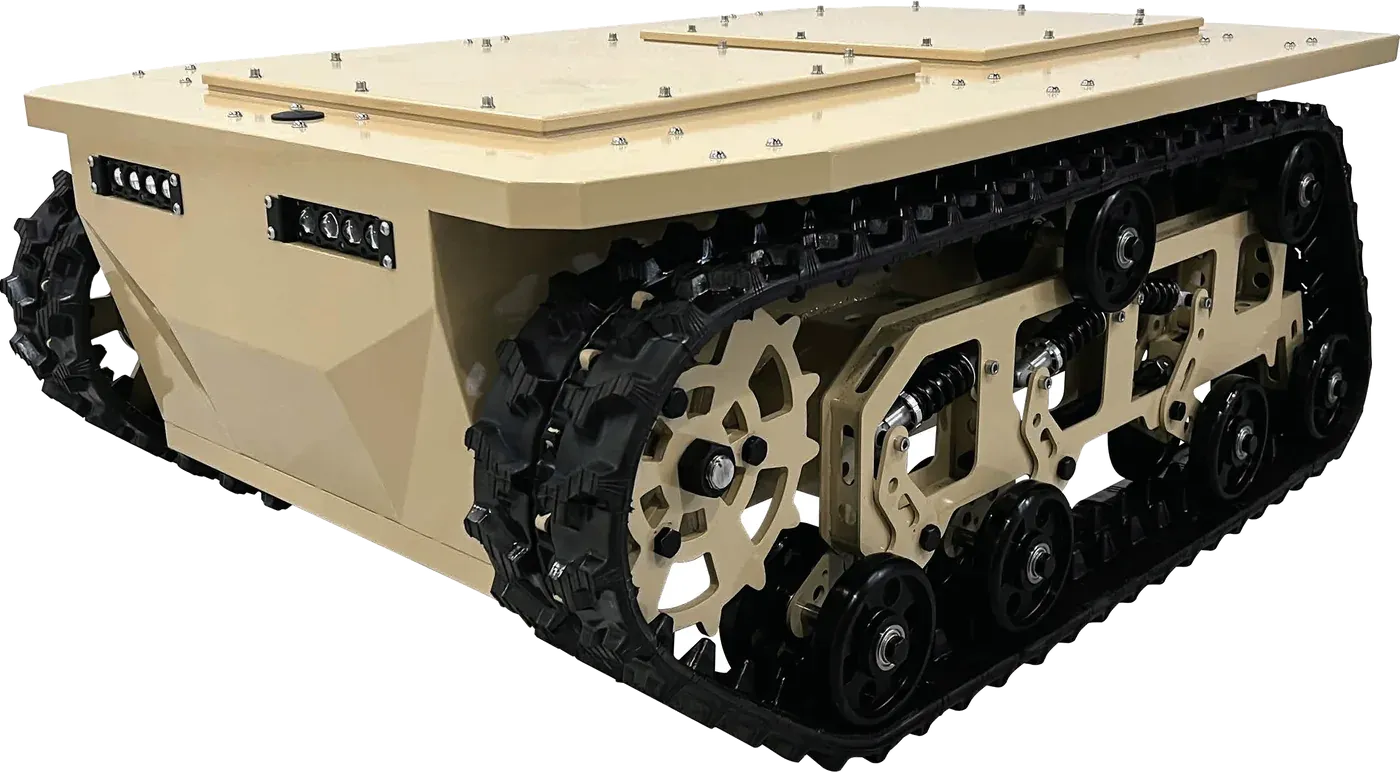

| TS6.0 | ≈300 kg | 300 kg | 5.4 km/h | 200 mm | IP66 |

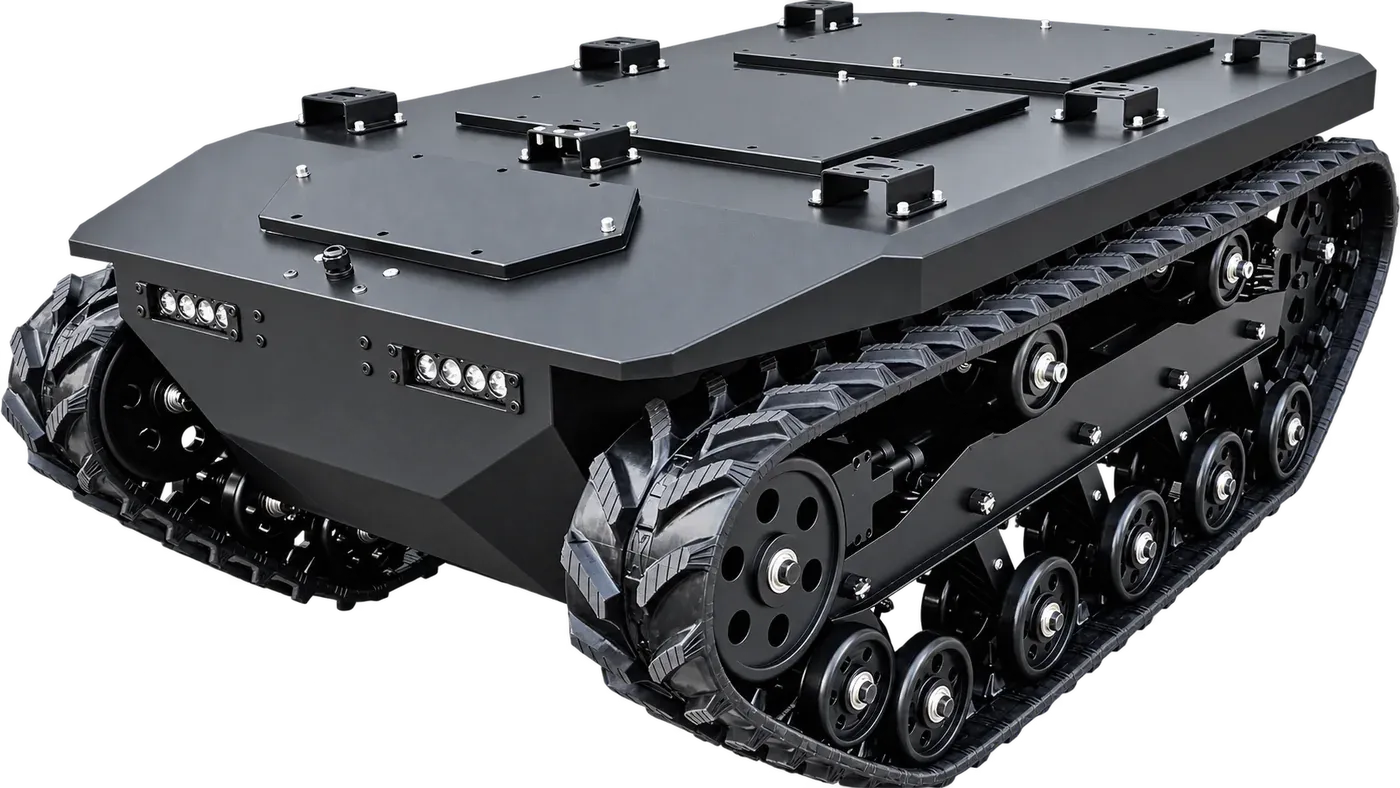

| TS6.0 Pro | ≈350 kg | 200–250 kg | 12 km/h | 200 mm | IP66 |

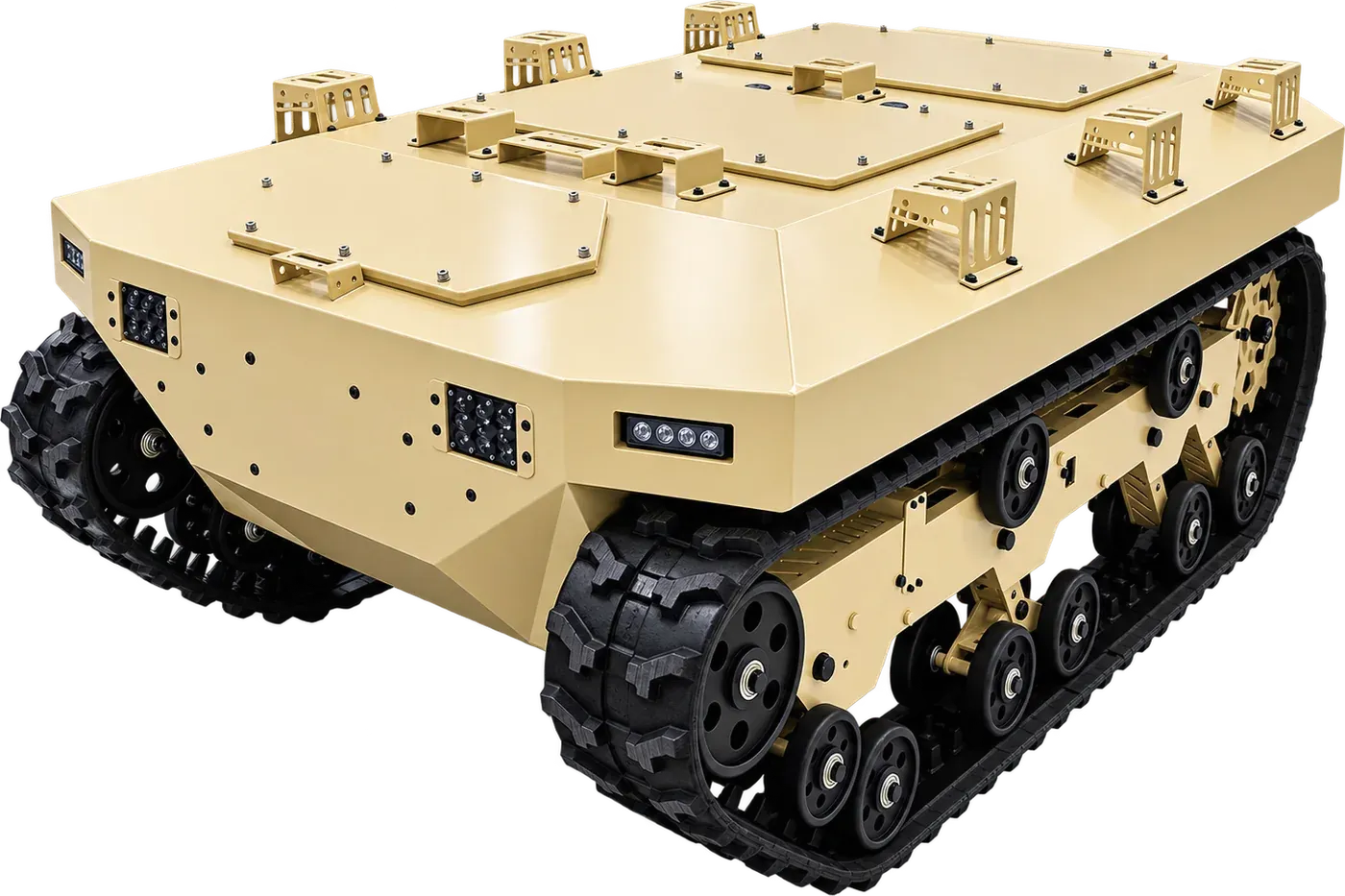

| TS7.0 Pro | ≈520 kg | 250–300 kg | 10 km/h | 300 mm | IP65 / IP67 |
The range
Wheeled Platforms
On roads, campuses and hard standing, wheels are more efficient and faster than tracks and go further on a charge. Four-wheel differential, mecanum and Ackermann steering for different turning circles and road speeds.
- Wheels or tracks? Wheels for roads and campuses; tracks for gravel, mud, steps and low grip
- Customisable Tyres, gearing, protection, power, sensors and payload structure
| Model | Kerb weight | Payload | Speed | Drive / steering | Protection / interface |
|---|---|---|---|---|---|

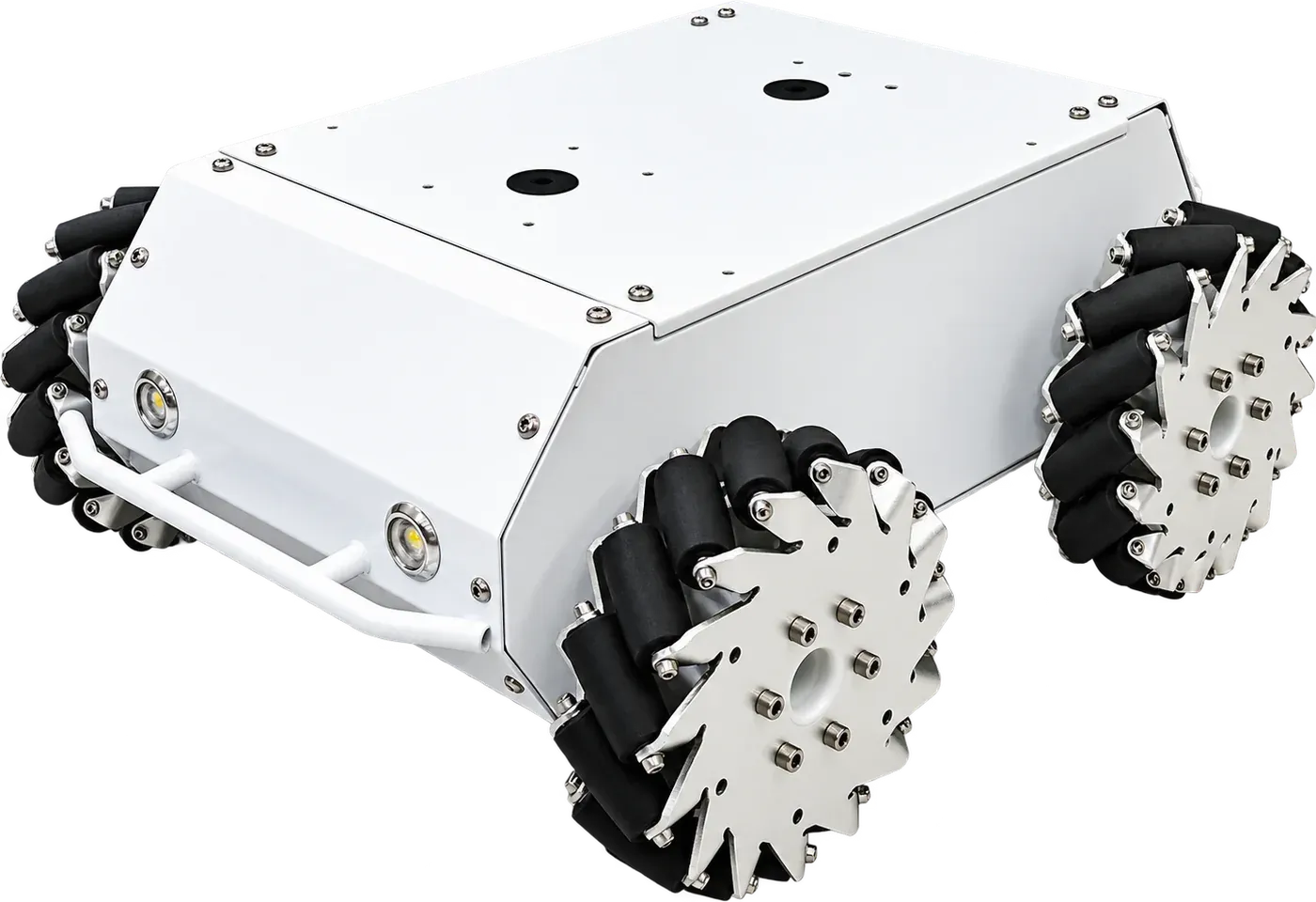

| WR100 | 12 kg | 10 kg | 7.2 / 4.2 km/h | 4WD differential / mecanum | CAN |

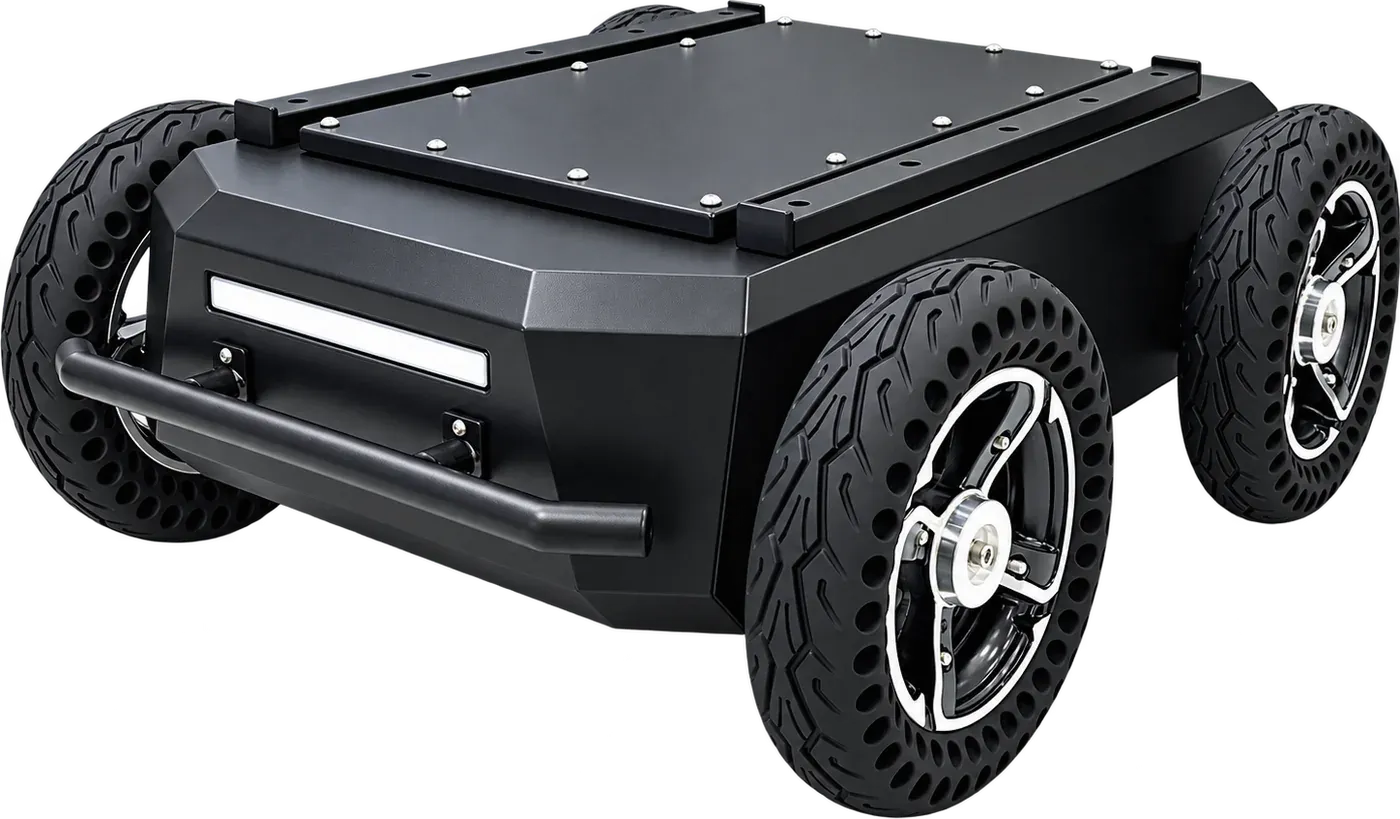

| WR200 MINI | ≈45 kg | 25 kg | 0.8 m/s | 4-wheel differential | IP66 |

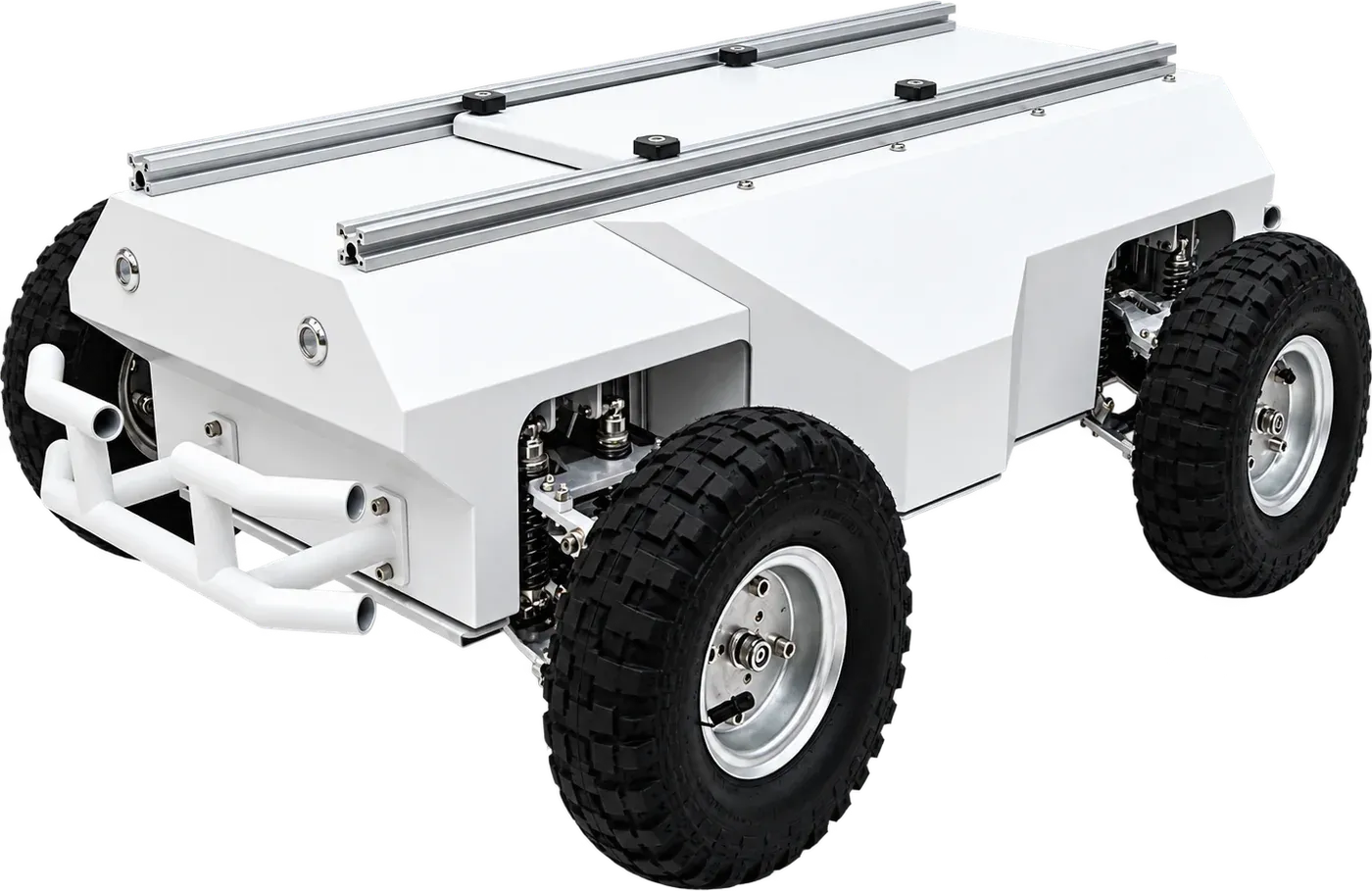

| WR200Y | ≈45 kg | 60 kg | 2.5 m/s | Ackermann (front steer, rear drive) | IP22 |
The range
ROS & 3D SLAM Autonomy
The chassis combined with LiDAR, cameras, IMU, RTK/BeiDou and an industrial PC for mapping, localisation, path planning, dynamic obstacle avoidance and waypoint navigation — from open ROS research platforms to autonomous inspection vehicles.

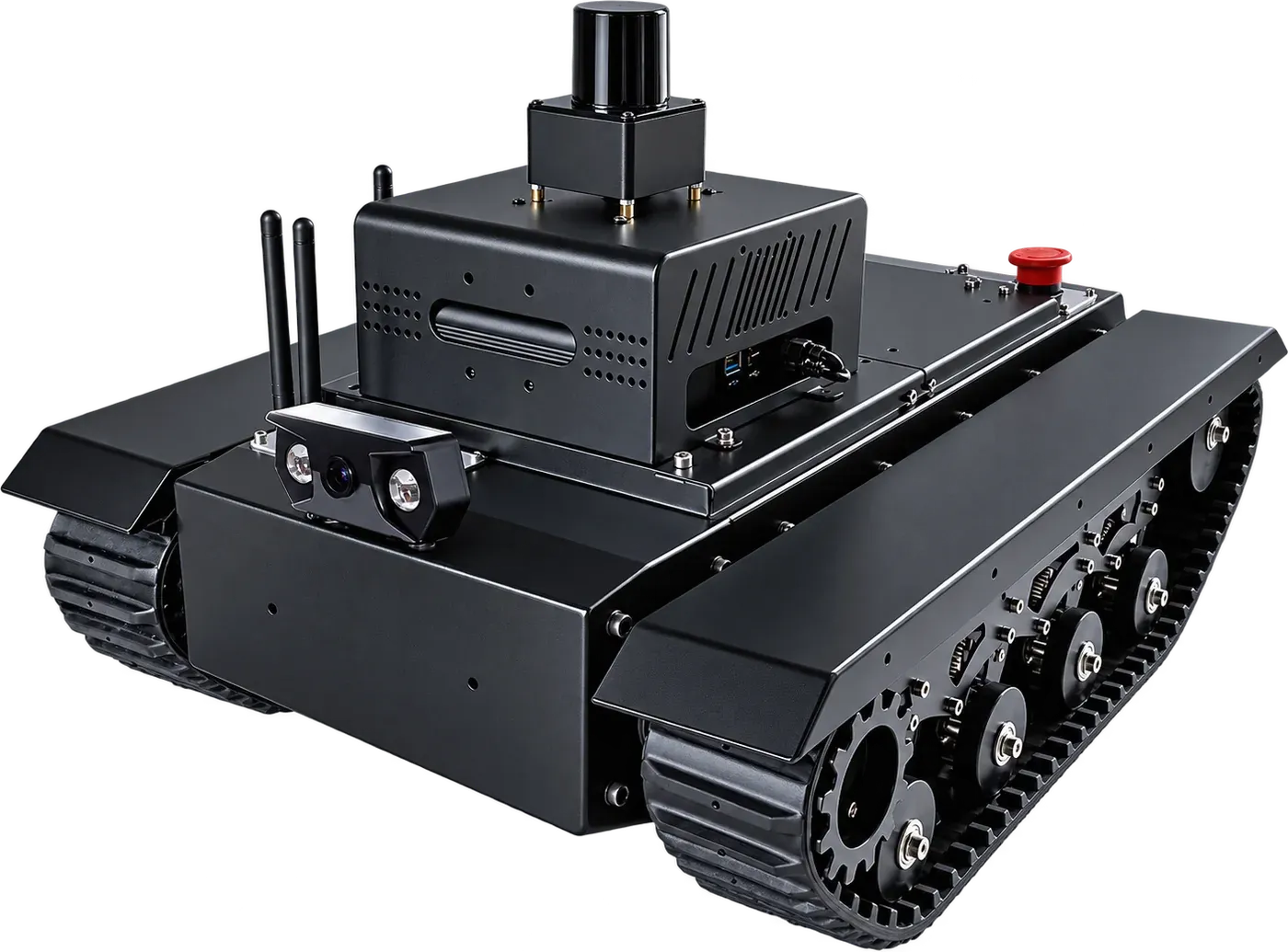

- TR500S · ROS Light–medium development platform — algorithms, teaching, multi-sensor fusion

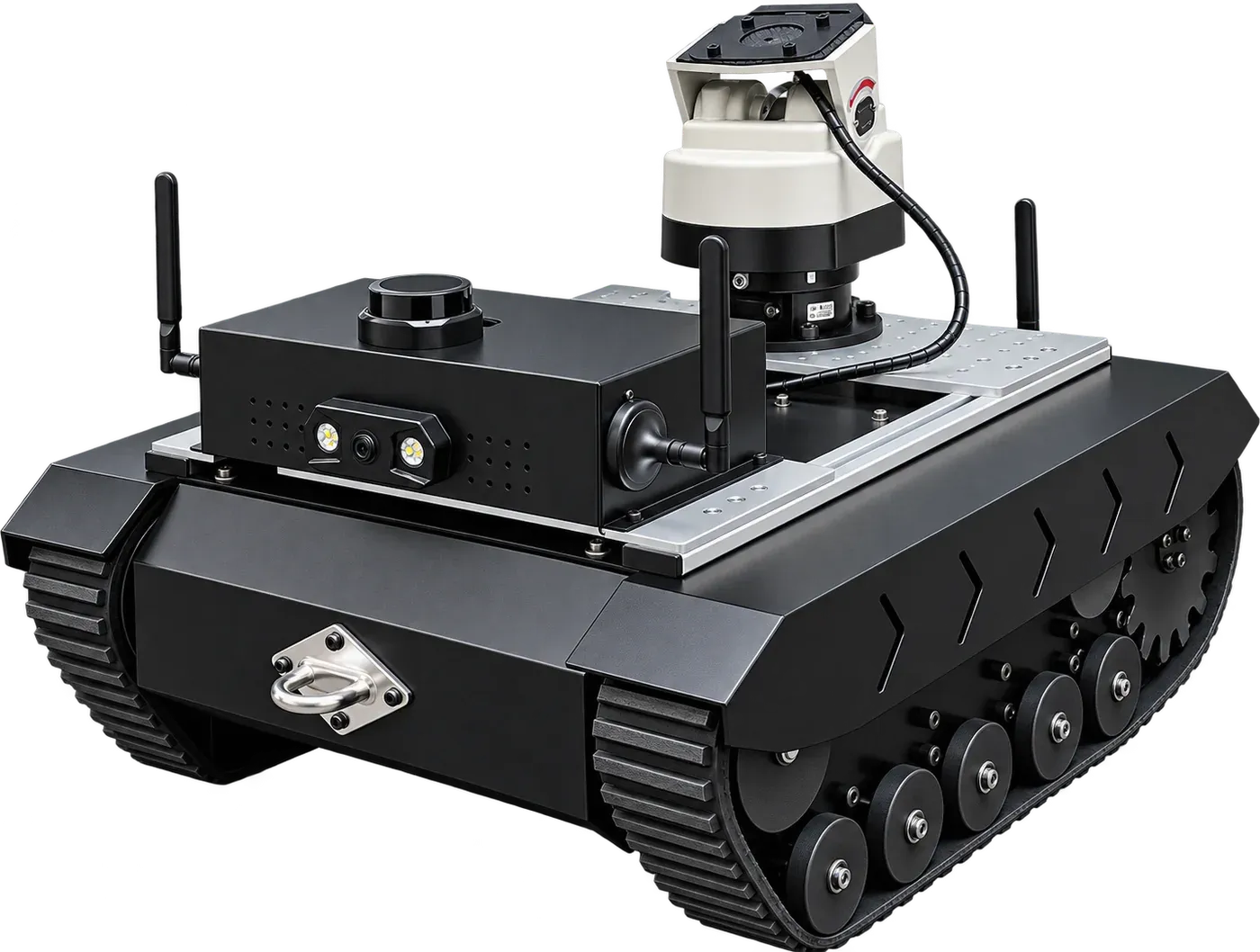

- TR600 WP · ROS More payload and mounting space — industrial inspection, complex sensor suites

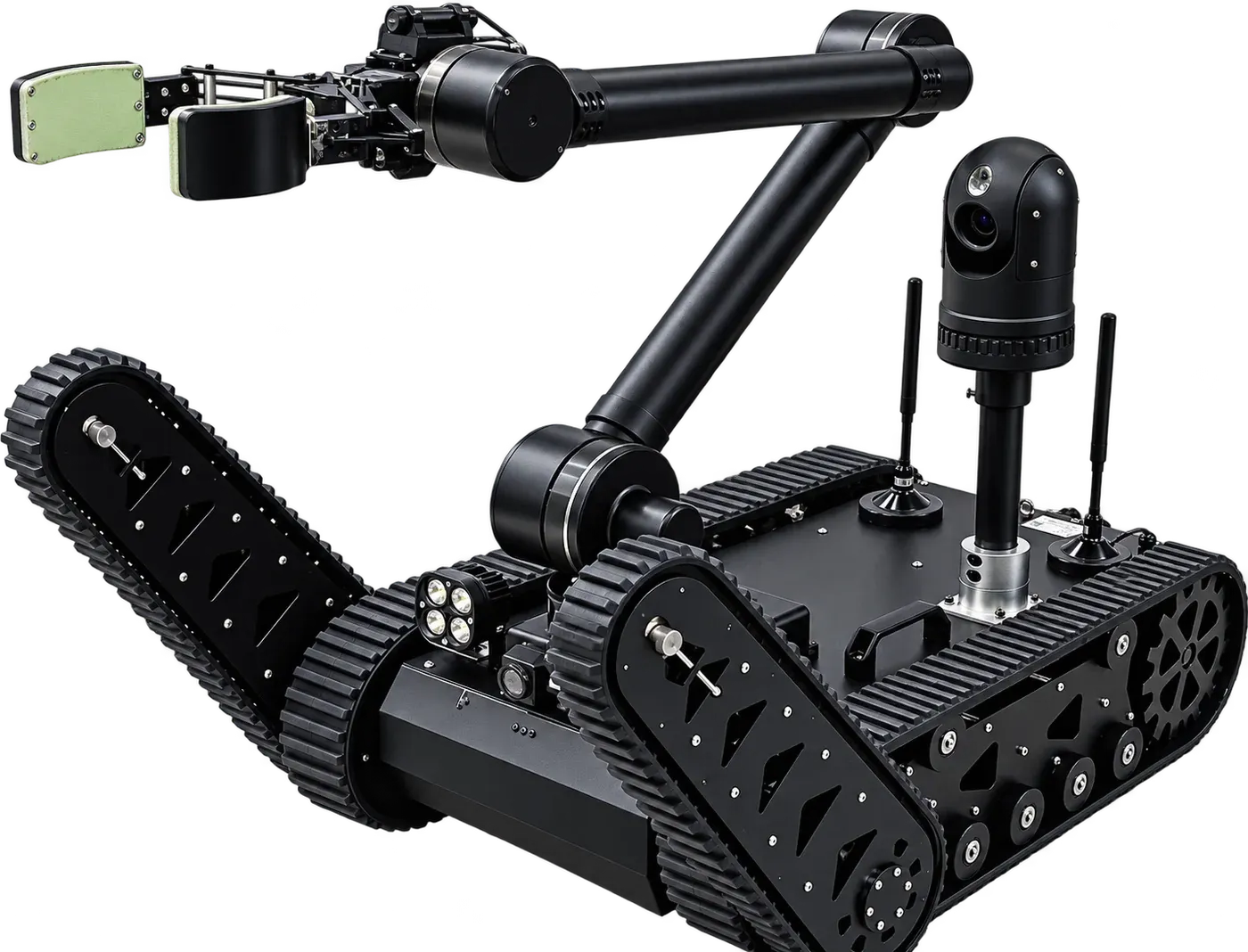

- TR700 · ROS Flipper chassis plus autonomy — complex sites and special applications
- 3D SLAM UGV Low-speed autonomous vehicle — LiDAR + camera + RTK/IMU, real-time localisation, waypoint navigation
The range

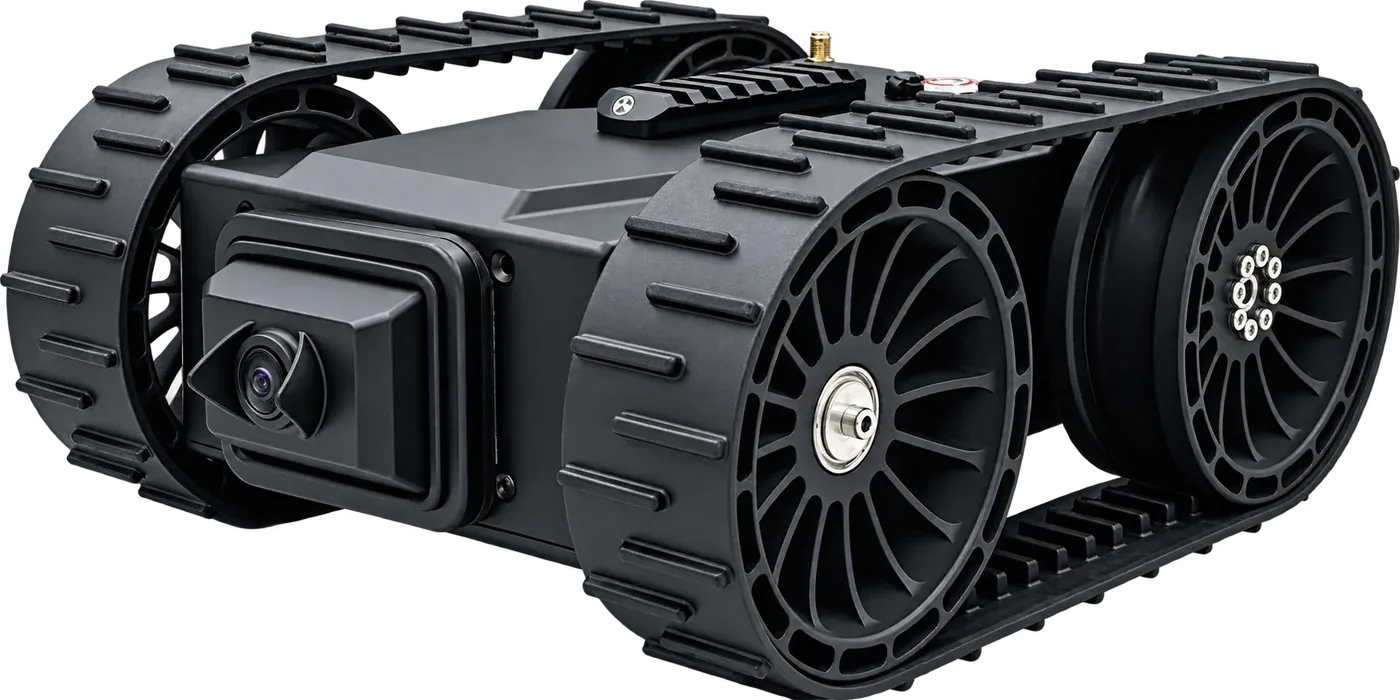

Portable Reconnaissance Robots

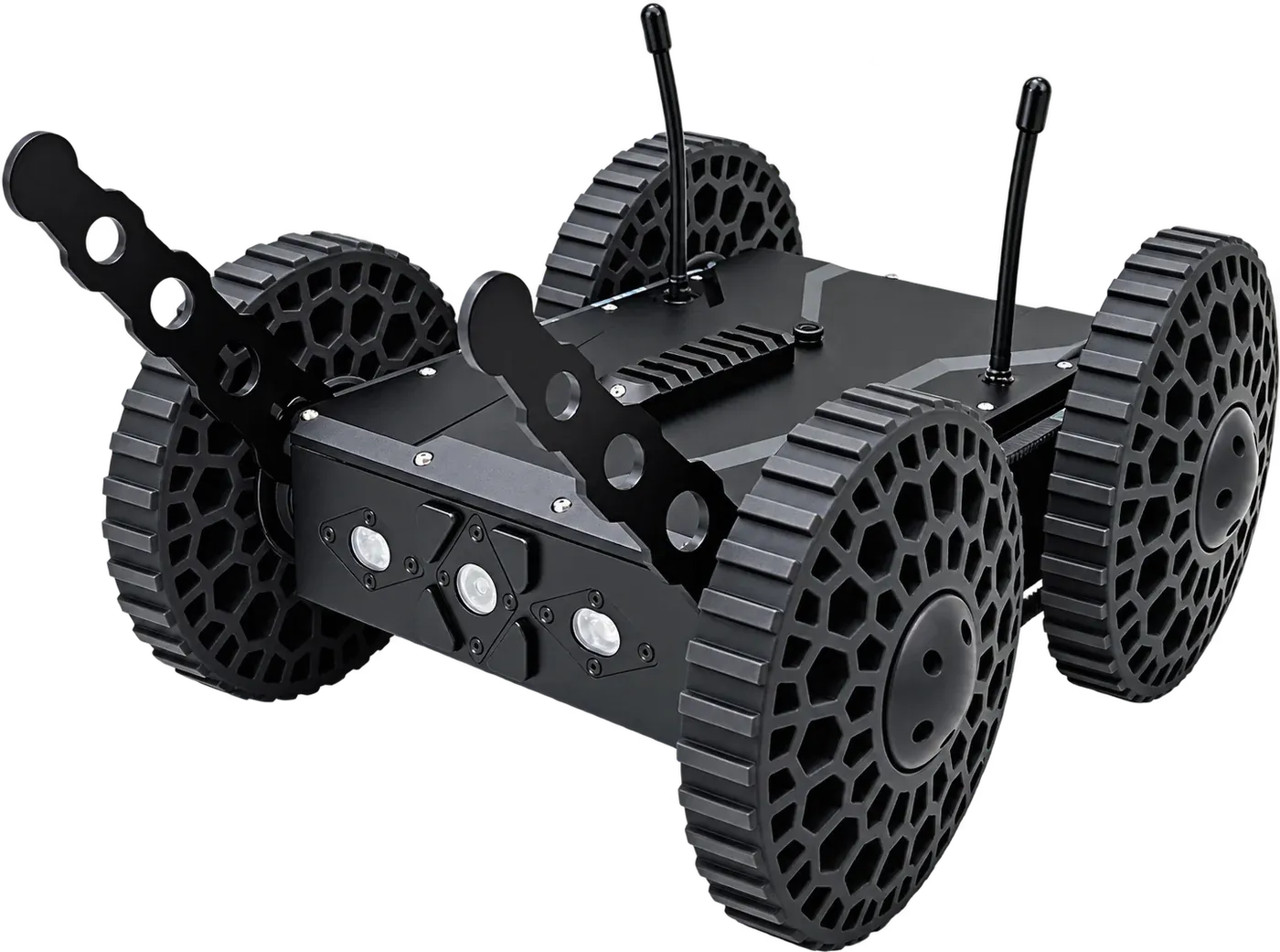

Man-portable scouts that go first into rooms, rubble, tunnels and confined hazardous spaces, sending live audio and video back to the operator. The TJ30 can be thrown through a window and survives a 3 m drop.
- Video 720P / 1080P (TB30) · live audio & video link
- Size TB30 290×207×110 mm (excl. antenna) · TJ30 345×270×130 mm
| Model | Weight | Payload | Speed | Protection | Control range |
|---|---|---|---|---|---|
| TB30 | 2.94 kg | 5 kg | 11 km/h | IP65 | 300–800 m |
| TJ30 | 4.2 kg | 5 kg | 7.2 km/h | IP66 | 1–2 km |
The range

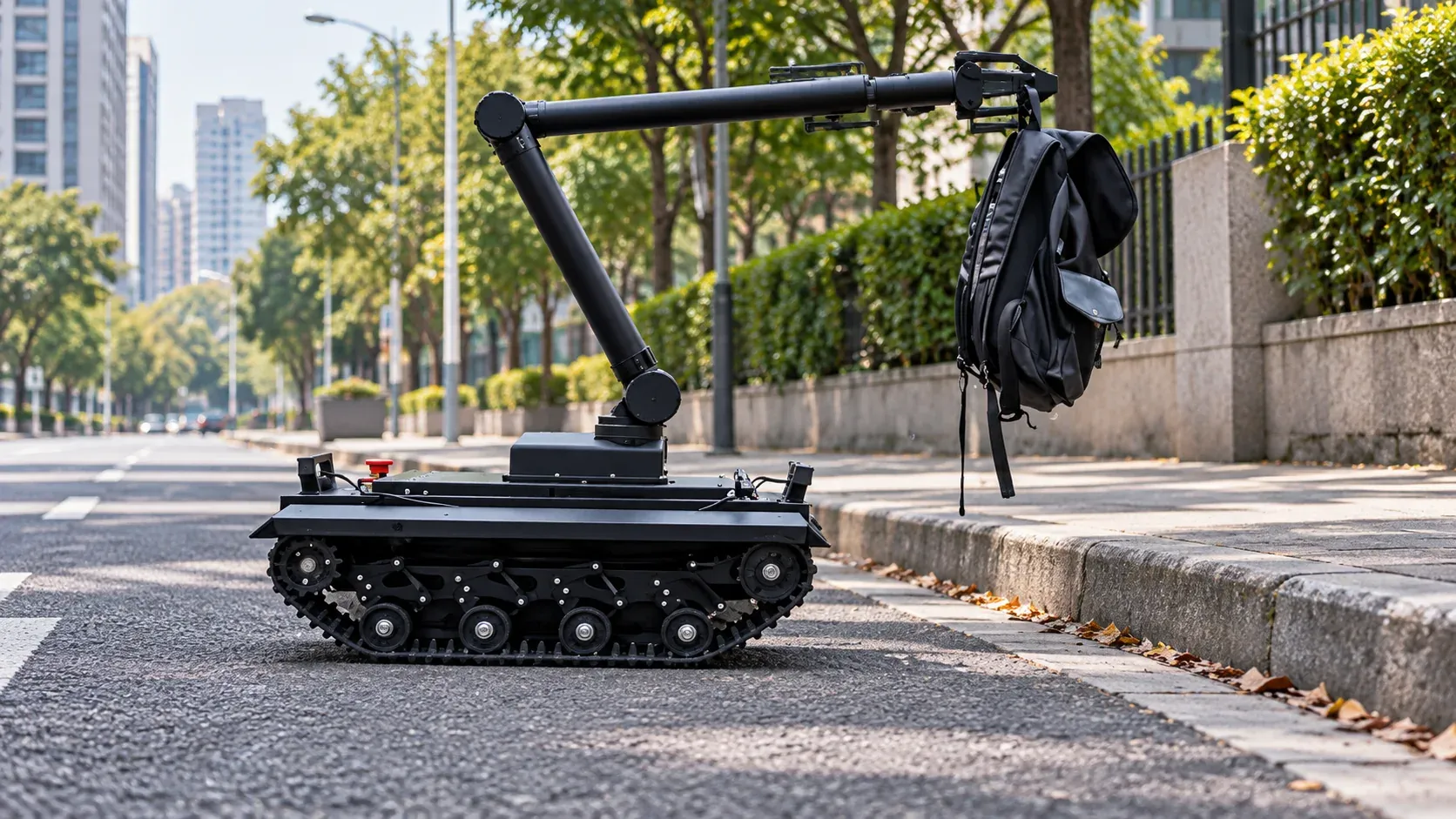

EOD, Firefighting & Rescue Robots
Complete mission robots built on the standard platforms, for places people shouldn’t go: hazardous-object disposal, remote firefighting in heat and smoke, and search and environmental assessment after earthquakes and disasters.
- Control & safety Wired + wireless dual link · multi-camera views · e-stop, homing and fail-safe recovery
- Gas & environment CO₂, CO, H₂S, O₂, NH₃, CH₄, temperature & humidity, sound/light alarm
| Model | Weight | Key capability |
|---|---|---|

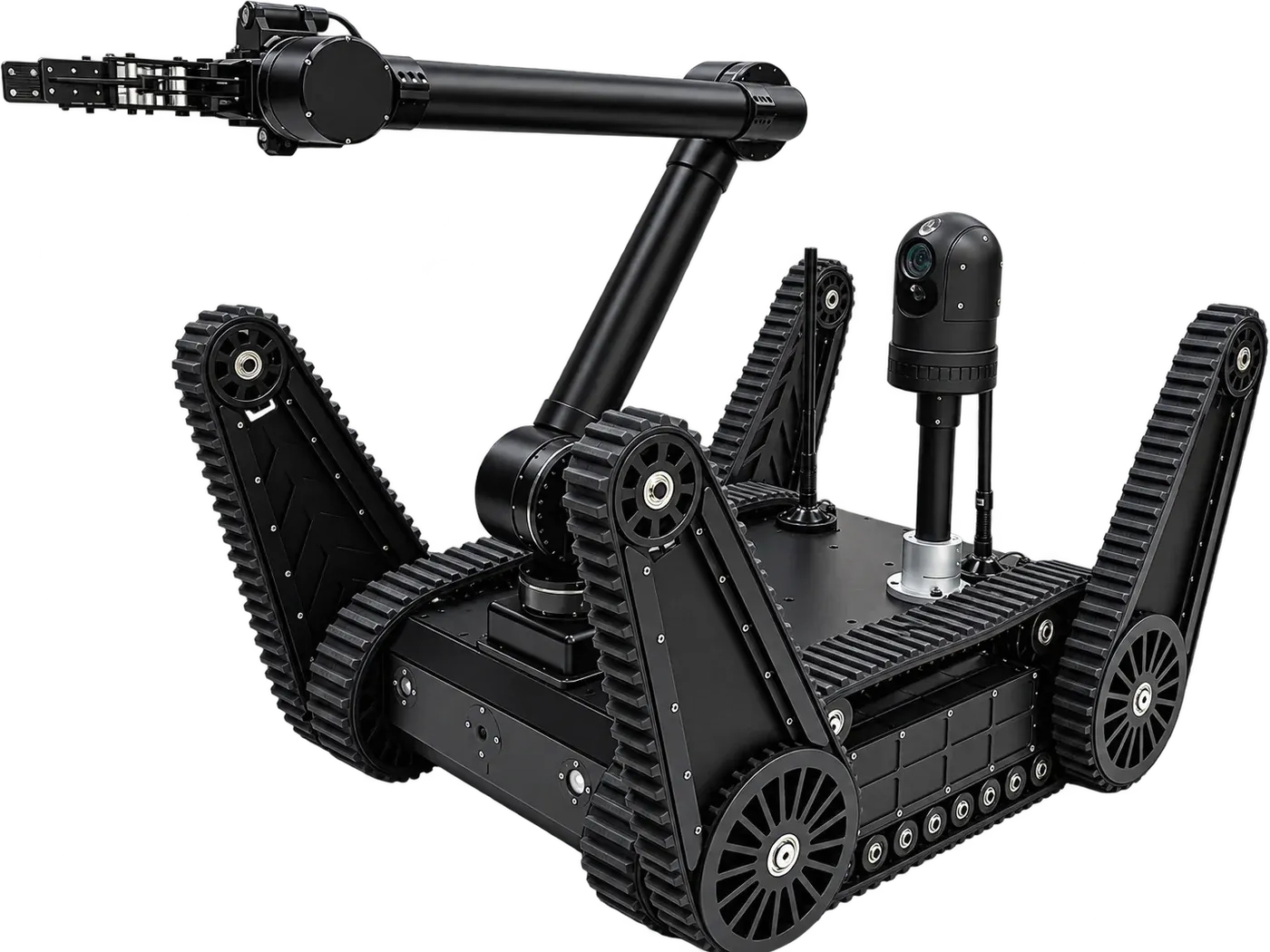

| SL-EOD20 | ≈170 kg | EOD — 80 kg platform payload, 550 mm step, 800 mm trench, arm lifts 20 / 10 kg |

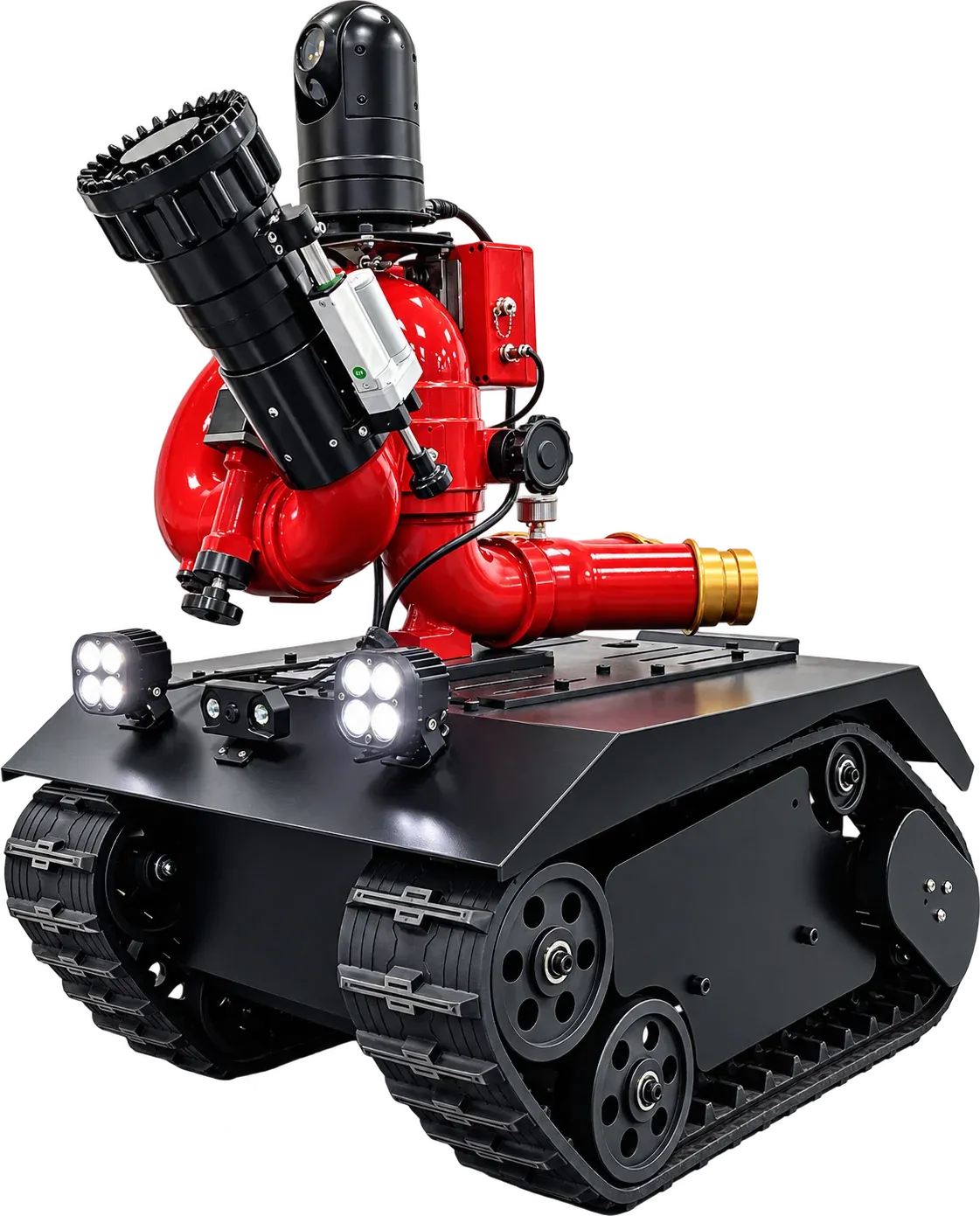

| TS5.0 Firefighting | ≈200 kg | Firefighting — 100 kg payload, IP65, monitor ≥80 L/s, throw ≥85 m |

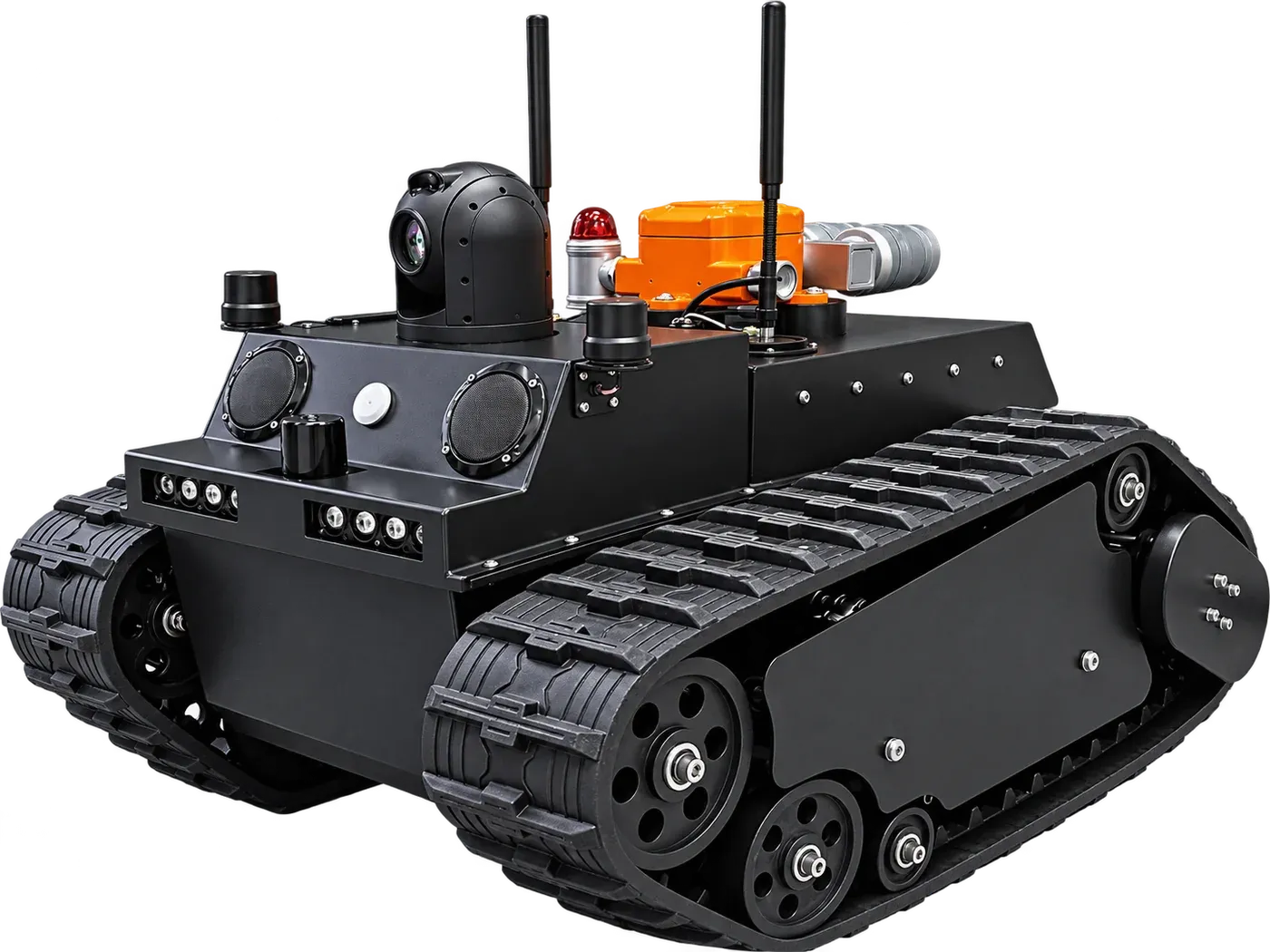

| TS5.0S Earth Rescue | 175 kg | Search & rescue — IP67, 300 mm wading, 1000 m remote control, six-gas detection |
The range

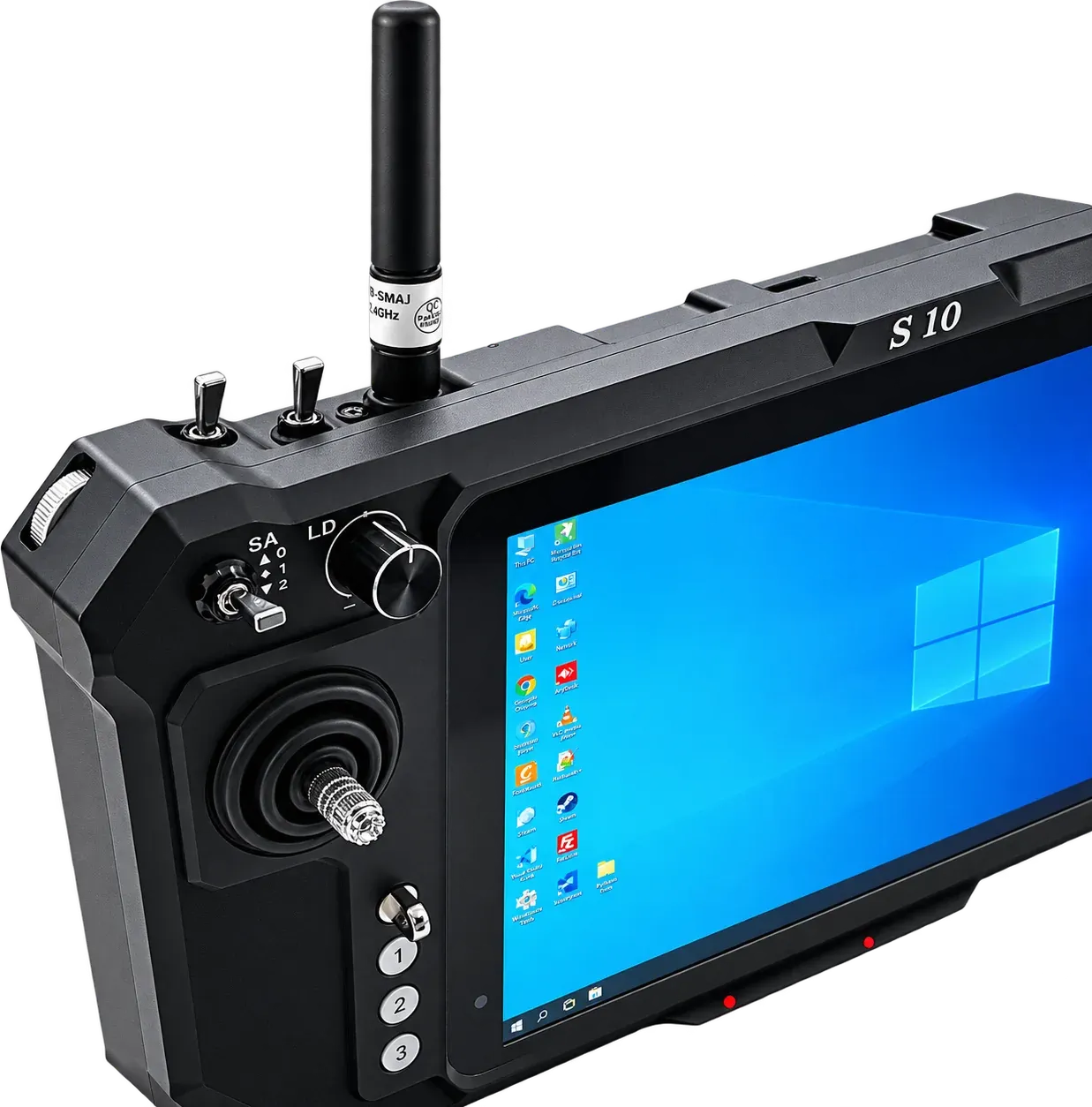

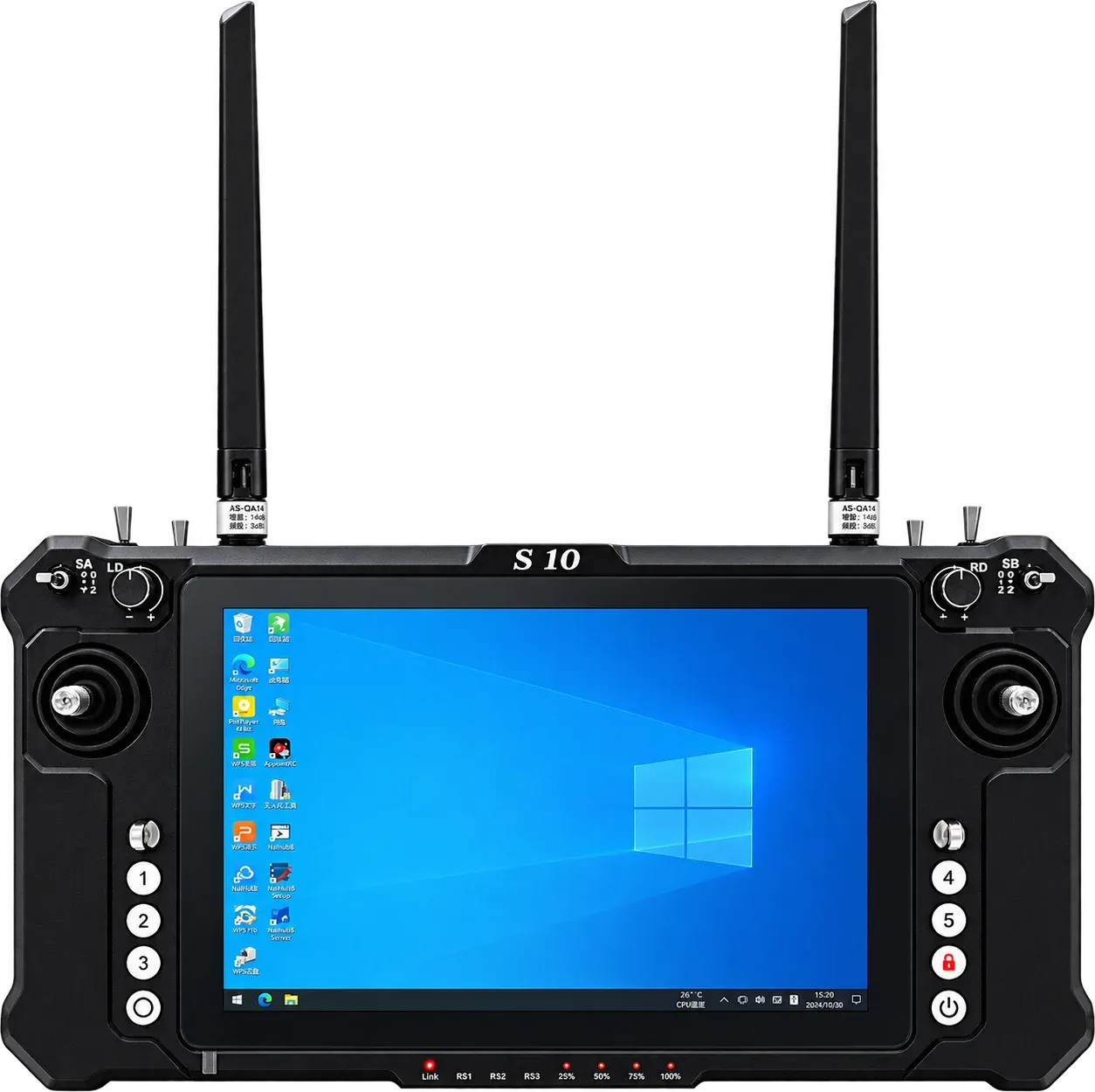

S10 Ground Control Station
One operator terminal for vehicle, payload and video. Twin joysticks and physical keys work with gloves on; the large display carries video, robot status, mission settings, alarms and navigation; the radio link is configured to the range and interference on site.
- Controls Twin joysticks + physical buttons
- Display Video, status, mission parameters, alarms, navigation
- Radio Dual antennas · link sized to range, bandwidth and interference
The range
In the field
Interfaces & protection
Typical applications
- Research & teaching platforms
- Autonomous inspection
- Security & reconnaissance
- EOD & hazardous-object disposal
- Firefighting
- Disaster search & rescue

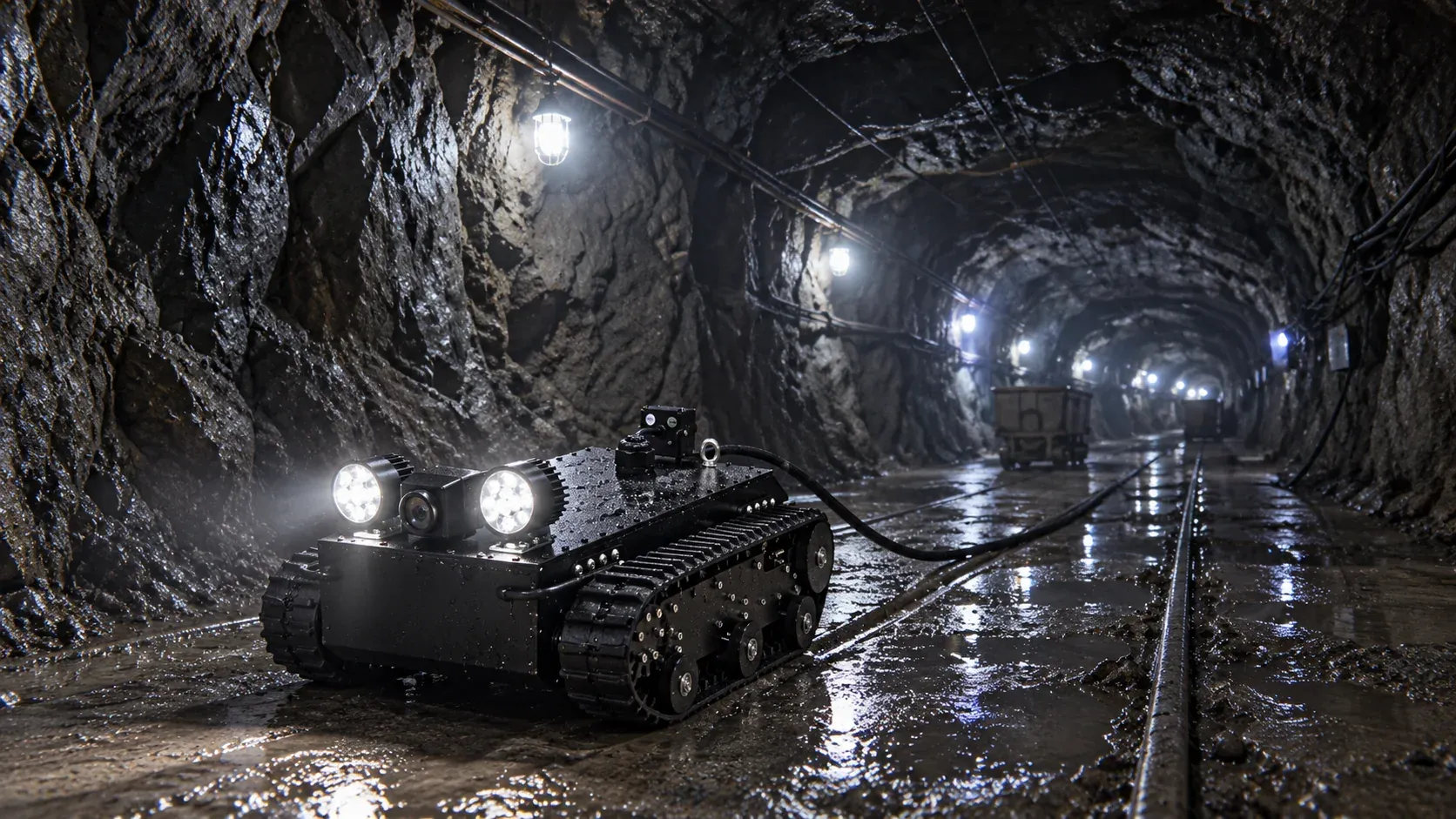

- Tunnel & underground inspection
- Campus & industrial UGVs
Representative selection — the full range and exact specifications are confirmed on quote. Custom configurations available.
Tell us the job — we’ll spec and quote it
Send us your application, load and site conditions. We’ll come back with the right unit, the certifications you need and a factory-direct price.
